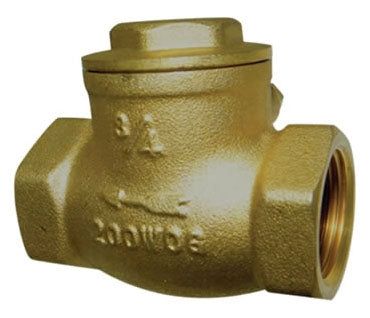

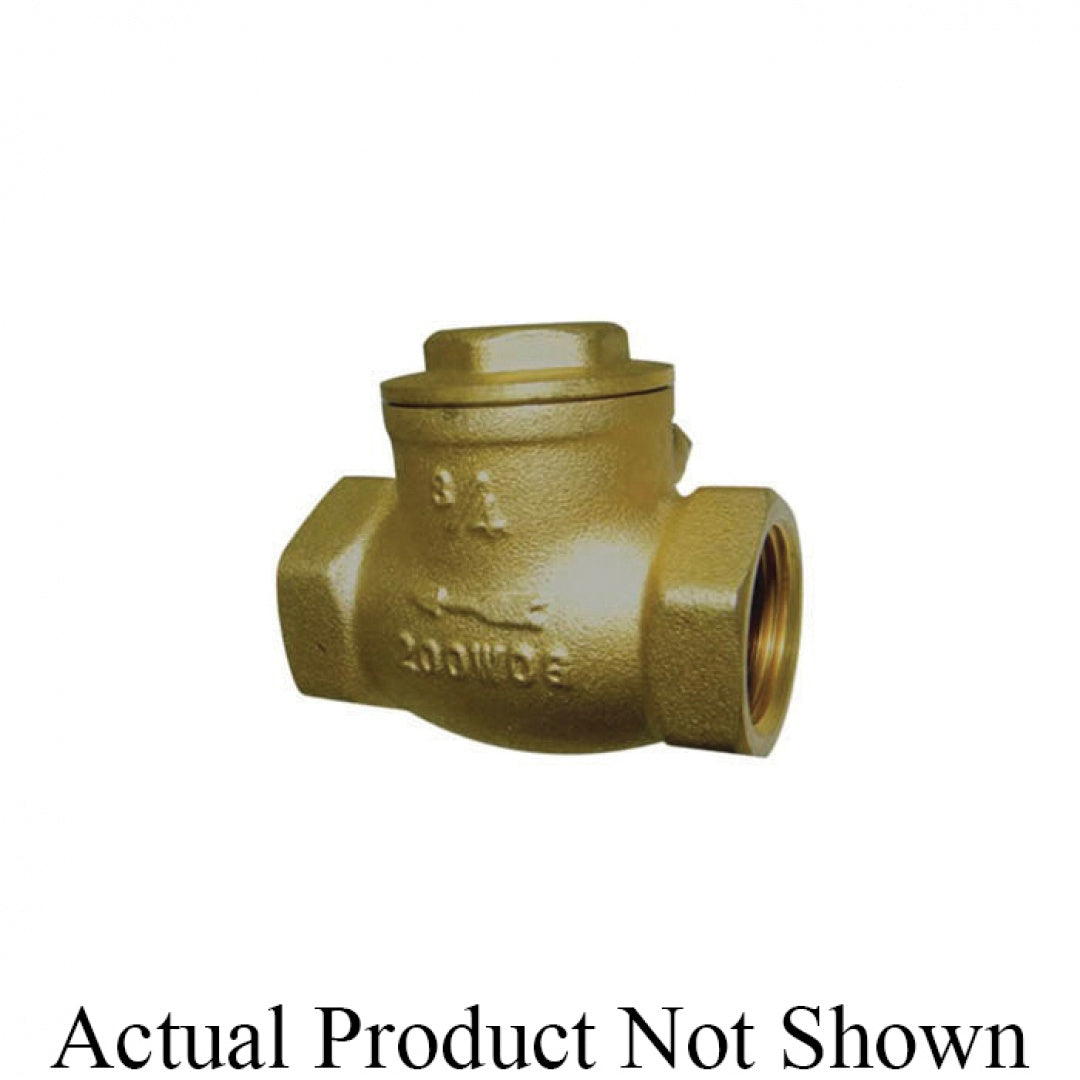

Red-White Valve 246AB_1/2 Low Lead Brass Swing Check Valve

Product Description

Red-White Valve 246AB_1/2 is a low lead brass swing check valve. It features a horizontal T-pattern design. This valve is designed for use in plumbing systems to prevent backflow. The valve has a nominal size of one half inch. It is made from forged brass with virgin PTFE softgoods. It is compliant with standards such as AB1953 and ANSI/NSF 61-G/372.

• Horizontal T-pattern design
• Forged brass body construction
• Temperature rating up to 450 degrees Fahrenheit

Product Highlights

This swing check valve is suitable for various plumbing applications. It prevents reverse flow, ensuring the efficiency of your system.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Body Material: Forged Brass

Technical Specifications

• Nominal Size: 1/2 inch
• End Style: Thread
• Inlet to Outlet Length: 2.07 inches
• Pressure Class: 200 lb WOG
• Softgoods Material: Virgin PTFE
• Temperature Rating: 450 degrees Fahrenheit
• Low Lead Compliance: No
• Top to Inlet Center: 1.41 inches
