Red-White Valve 246AB_1-1/2 LOW LEAD BRASS SWING CHECK

Product Description

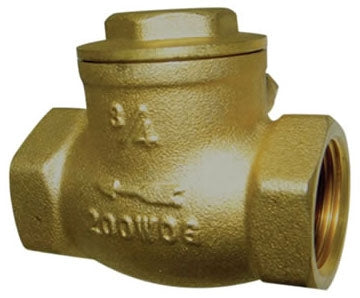

The Red-White Valve 246AB_1-1/2 is a low lead brass swing check valve. This product features a horizontal T-pattern design, ideal for preventing backflow in plumbing systems.

• Nominal size of one and one-half inches.
• Made of forged brass with Virgin PTFE soft goods.
• Pressure class rated up to 200 pounds working pressure.

Product Highlights

This valve is suitable for applications where low lead compliance is necessary. It features a durable construction and high temperature resistance.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Model Number: 246AB_1-1/2

Technical Specifications

• Body Material: Forged Brass
• End Style: Thread
• Inlet to Outlet Length: 3.74 inches
• Low Lead Compliance: No
• Nominal Size: 1-1/2 inches
• Pressure Class: 200 lb WOG
• Series: 246AB
• Softgoods Material: Virgin PTFE
• Temperature Rating: 450 degrees F
• Top to Inlet Center: 2.3 inches
• Type: Horizontal T-Pattern
