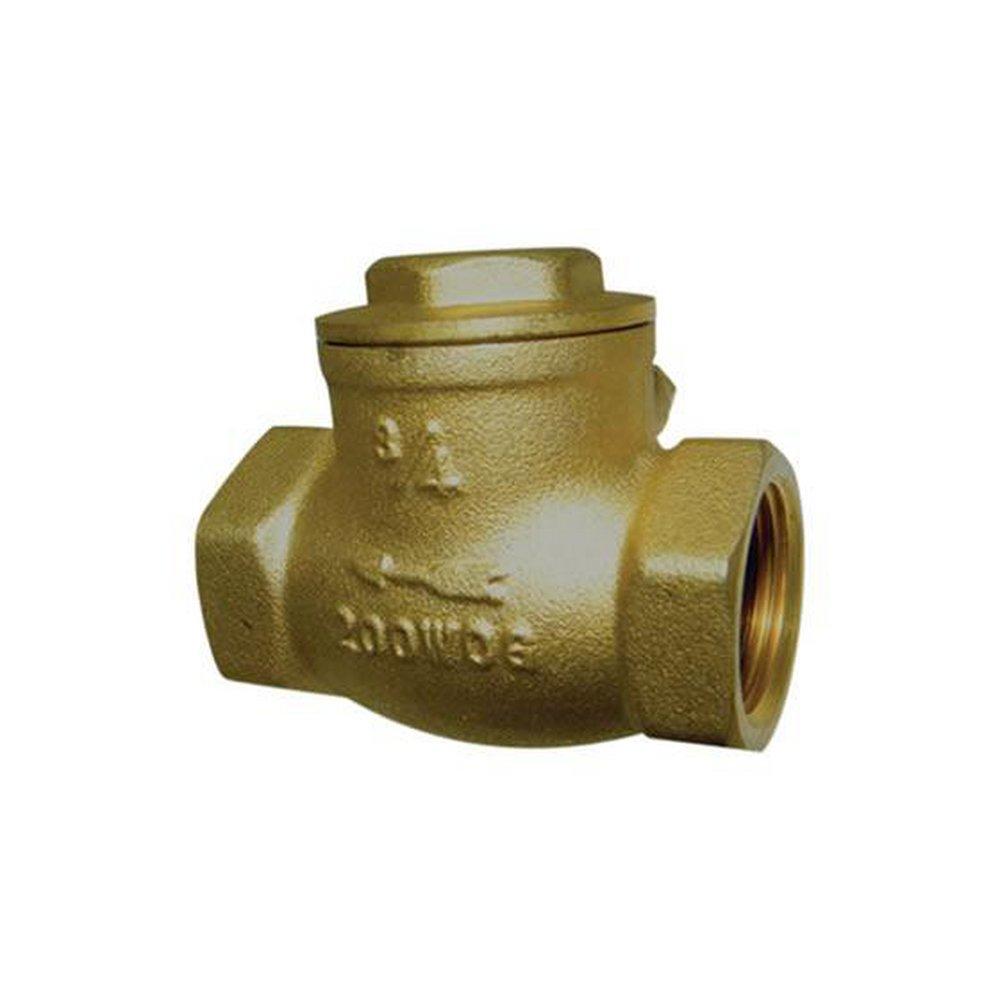

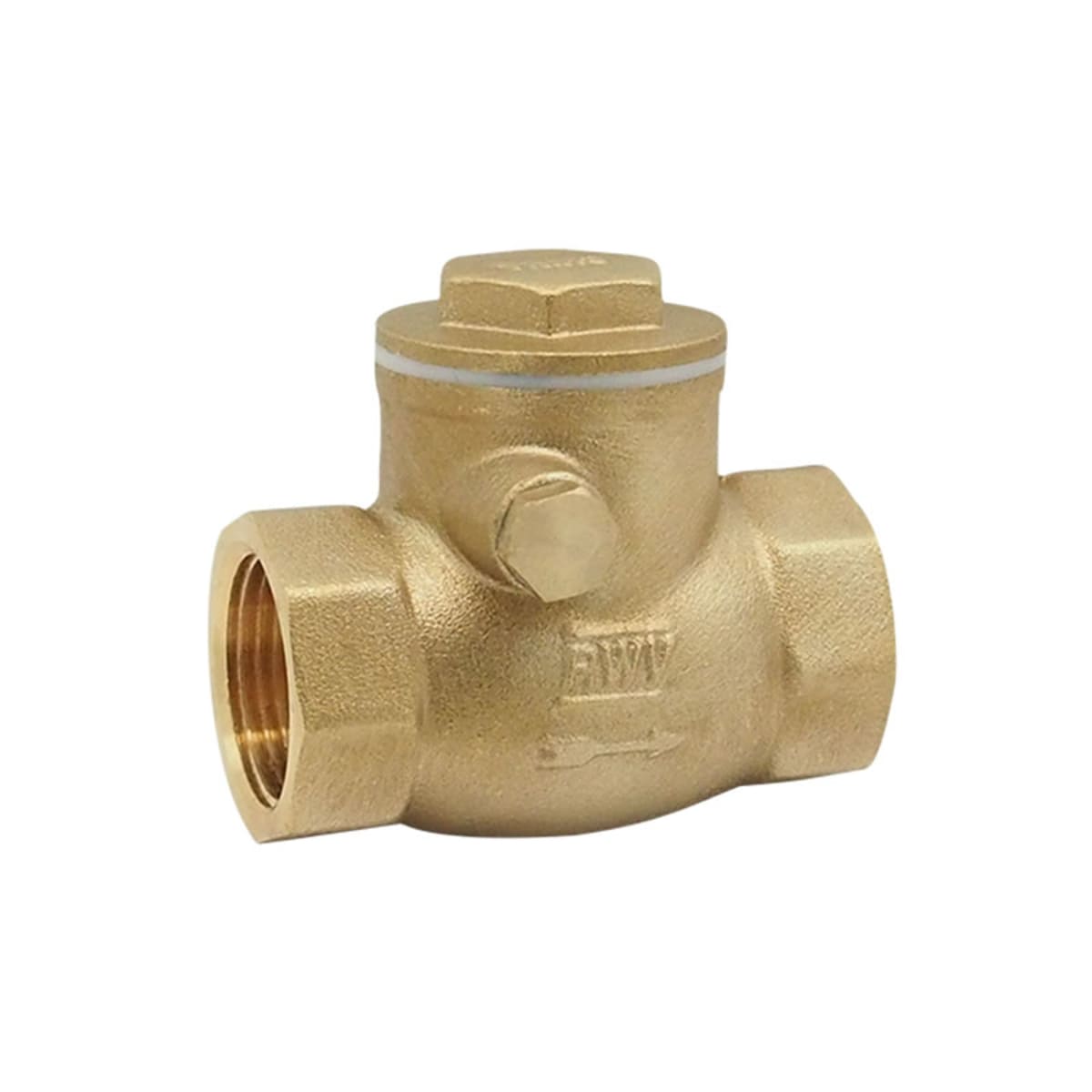

Red-White Valve 246AB3/4 3/4 in. Brass FNPT Swing Check Valve

Product Description

The Red-White Valve 246AB3/4 is a three-quarter inch brass FNPT swing check valve designed for reliable performance in fluid systems.

• Forged brass body with a virgin PTFE gasket.
• 200 lb WOG pressure class suitable for various applications.
• Horizontal T-pattern with threaded ends for easy installation.

Product Highlights

This swing check valve prevents backflow in piping systems, ensuring efficient operation in HVAC and plumbing applications.

Product Information

Standard Information

• Brand: Red-White Valve
• MPN: 246AB3/4

Technical Specifications

• Body Material: Forged Brass
• End Style: Thread
• Inlet to Outlet Length: 2.38 inches
• Low Lead Compliance: No
• Nominal Size: 3/4 inches
• Pressure Class: 200 lb WOG
• Series: 246AB
• Softgoods Material: Virgin PTFE
• Temperature Rating: 450 degrees F
• Top to Inlet Center: 1.46 inches
• Type: Horizontal T-Pattern
