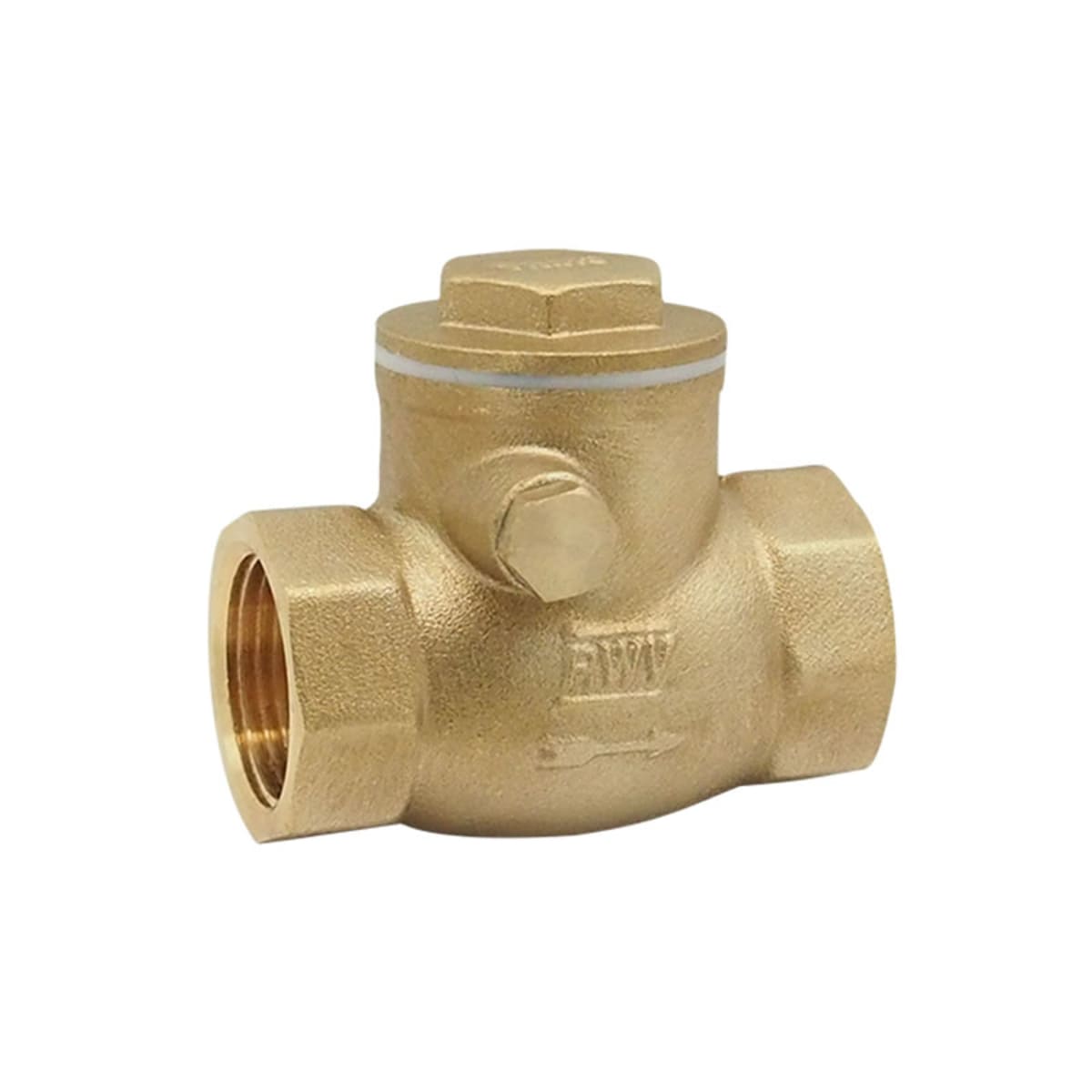

Red-White Valve 246AB2 Low Lead Brass Swing Check 2 in Replacement MPN

Product Description

The Red-White Valve 246AB2 is a low lead brass swing check valve. It is designed for high performance in various plumbing applications. This valve has a horizontal T-pattern and allows flow in one direction while preventing backflow.

• Low lead compliance for safety
• Virgin PTFE gasket for reliable sealing
• Temperature rating up to four hundred fifty degrees Fahrenheit

Product Highlights

This swing check valve is suitable for systems requiring low lead and robust performance. Its forged brass body and quality soft goods ensure long-term use.

Product Information

Standard Information

• Brand: Red-White Valve Corp
• MPN: 246AB2

Technical Specifications

• Body Material: Forged Brass
• End Style: Thread
• Inlet to Outlet Length: 4.21 inches
• Low Lead Compliance: No
• Nominal Size: 2 inches
• Pressure Class: 200 lb WOG
• Series: 246AB
• Softgoods Material: Virgin PTFE
• Temperature Rating: 450 degrees Fahrenheit
• Top to Inlet Center: 2.78 inches
• Type: Horizontal T-Pattern
