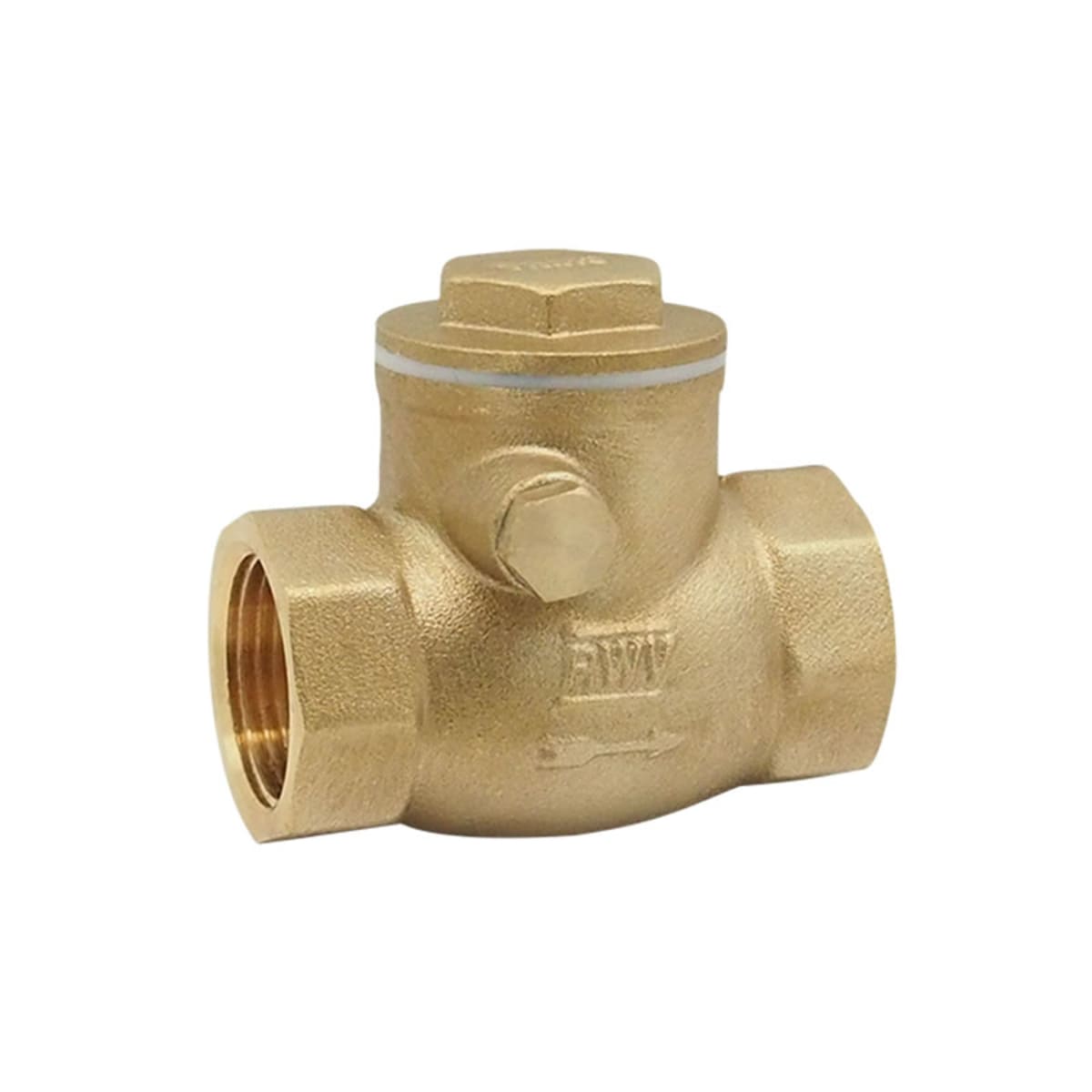

Red-White Valve 246AB1-1/4 Low Lead Brass Swing Check Valve (1-1/4 in)

Product Description

The Red-White Valve 246AB1-1/4 is a low lead brass swing check valve designed for horizontal flow in plumbing systems. This valve allows fluid to flow in one direction while preventing backflow. Its robust forged brass body ensures long-lasting performance.

• Designed for horizontal installation.
• Features a virgin PTFE gasket for secure sealing.
• Rated for a maximum pressure of 200 lb WOG.

Product Highlights

This valve meets several industry standards making it reliable for various applications in plumbing systems.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Part Number: 246AB 1-1/4

Technical Specifications

• Body Material: Forged Brass
• End Style: Thread
• Inlet to Outlet Length: 3.23 in
• Low Lead Compliance: No
• Nominal Size: 1-1/4 in
• Pressure Class: 200 lb WOG
• Series: 246AB
• Softgoods Material: Virgin PTFE
• Temperature Rating: 450 deg F
• Top to Inlet Center: 2.05 in
• Type: Horizontal T-Pattern
