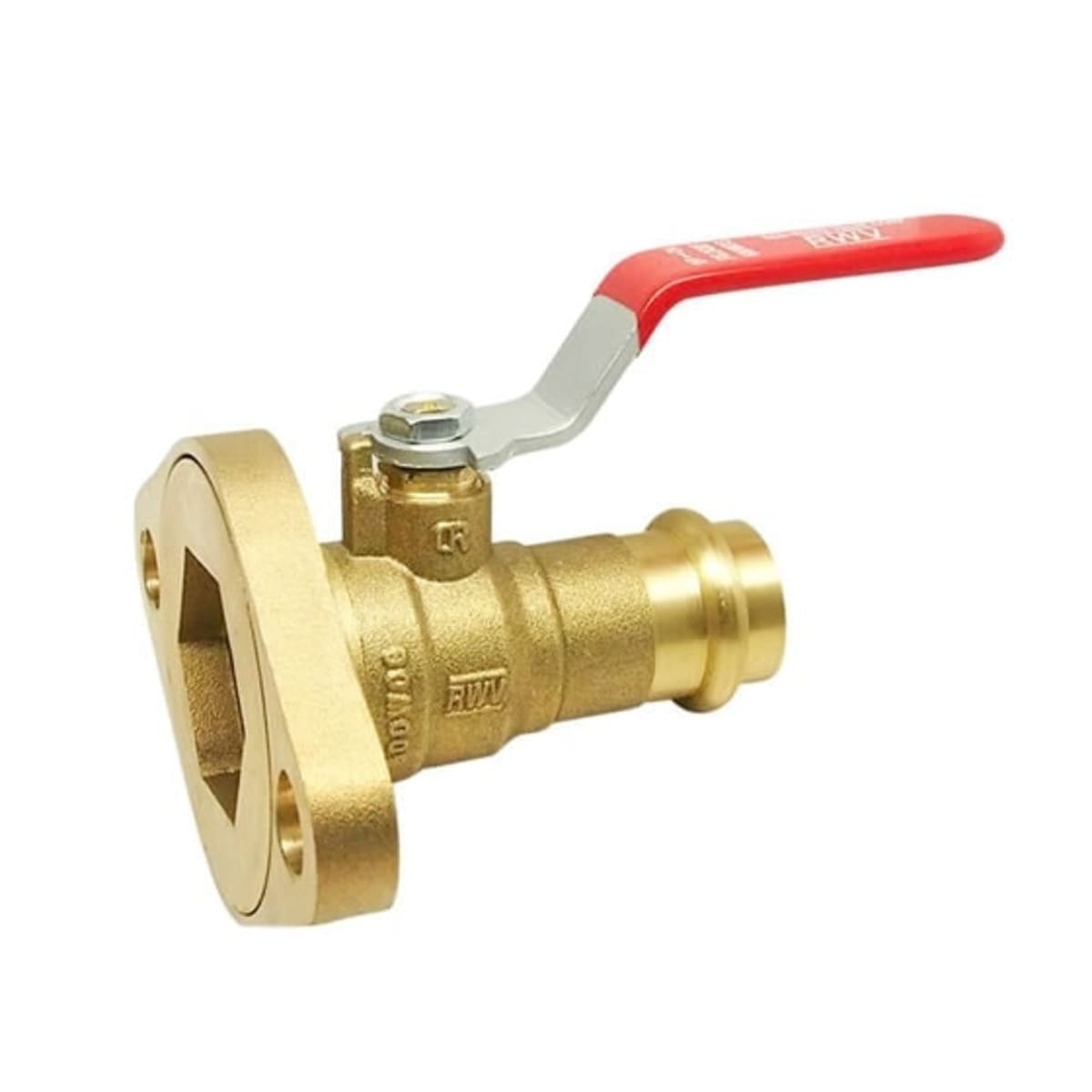

Red-White Valve 2420f 3/4 PUMP FLANGE BALL VLV EzPress

Product Description

The Red-White Valve 2420f 3/4 is a quarter-turn ball valve designed for use in various plumbing applications. This valve features a three-piece construction, allowing for easy maintenance and replacement. The EzPress connection style allows for quick installation with a rotating pump flange.

• Pressure rating of six hundred pounds Water, Oil, and Gas (WOG).
• Constructed from durable materials including chrome-plated brass and PTFE.
• Suitable for full-port flow with a three-quarter inch nominal size.

Product Highlights

This ball valve is equipped with a wing handle actuator for easy operation and boasts brass body components along with a PTFE seat trim for reliable sealing. Its compact design facilitates a straightforward installation process, making it ideal for heating and hydronics applications.

Product Information

Standard Information

• Brand: Red-White Valve Corp
• Type: Three-Piece

Technical Specifications

• Actuator Type: Wing Handle
• Body Material: Brass
• Ball Material: Chrome Plated Brass
• End Style: EzPress x Rotating Pump Flange
• Nominal Size: 3/4 inches
• Orifice Size: 0.73 inches
• Inlet to Outlet Length: 3.31 inches
• Top to Inlet Center: 2.07 inches
• Pressure Rating: 600 lb WOG
• Softgoods Material: PTFE/FKM/EPDM
