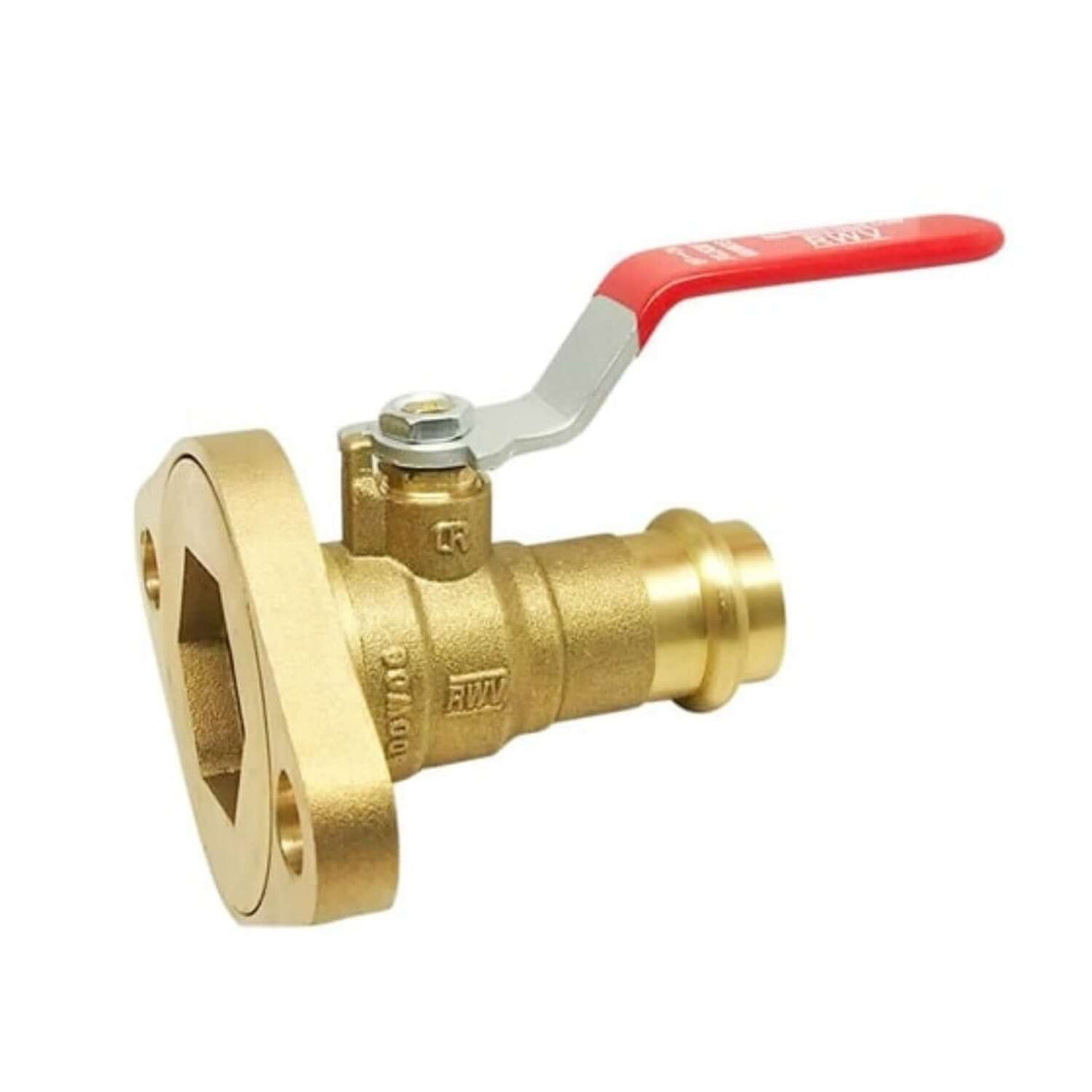

Red-White Valve 2420F 2 Brass Isolation Pump Flange 2 Inch

Product Description

The RED-WHITE VALVE 2420F 2 is a 2-inch brass isolation pump flange designed for hydronic, plumbing, and HVAC applications. This full-port valve features a 3-piece body and a rotating flange design, enabling quick and secure installation. It includes a drain valve and operates with a 1/4 turn ball valve style, ensuring efficient flow control. Constructed with DZR brass, it offers superior corrosion resistance for aggressive water environments.

• 3-piece Body Full Port design for maximum flow
• Rotating Flange Design simplifies pump alignment
• Includes Bolt Kit and Wing Handle for complete installation

Product Highlights

This brass isolation pump flange features a 3-piece full port body, rotating flange, and a 1/4 turn ball valve style for efficient operation.

Product Information

Standard Information

• Brand: RED-WHITE VALVE
• Manufacturer Part Number: 2420F 2

Technical Specifications

• Connection Type: Press x 2-Bolt
• Port Type: Full Port
• WOG Rating: 600 PSI
• Construction Material: DZR Brass
• Body Material: DZR Brass (UNS C35330)
• End Piece Material: Brass (ASTM B283 C37700, ASTM B124 C37700 for 2 inch size)
• Ball Material: Brass / Chrome-Plated (ASTM B30 C85700)
• Seat Material: PTFE
• Flange Material: Brass (ASTM B283 C37700)
• Stem Material: Brass (ASTM B124 C37700)
• O-Ring Material (FKM): FKM (NSF Approved)
• Packing Ring Material: PTFE
• Packing Nut Material: Brass (ASTM B124 C37700)
• Handle Material: Steel / Dacromet Plated (ASTM A36)
• Nut Material: Steel / Zinc Plated (ASTM A36)
• O-Ring Material (EPDM): EPDM Perox (NSF Approved)
