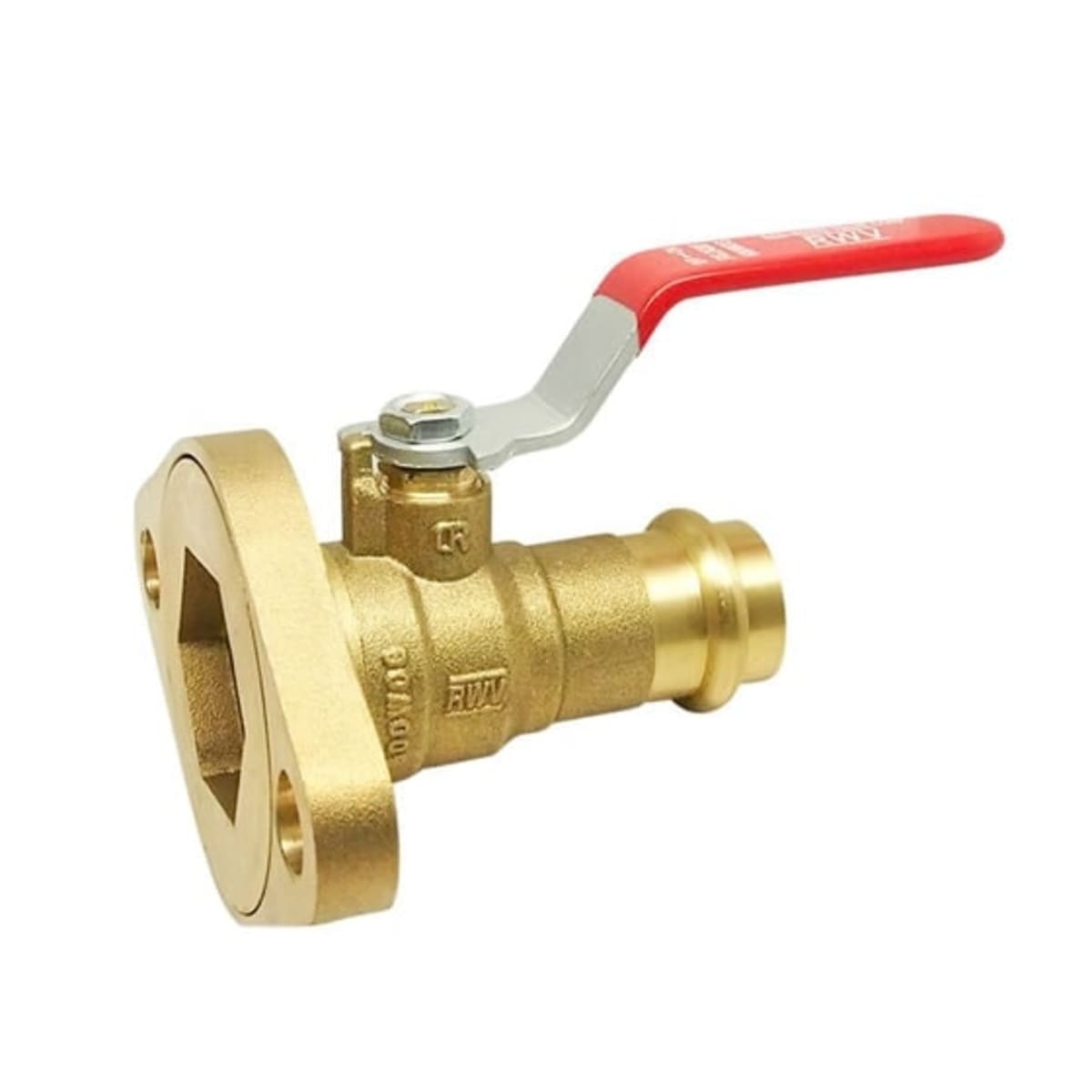

Red-White Valve 2420f 1-1/2 PUMP FLANGE BALL VLV EzPress

Product Description

The Red-White Valve 2420f 1-1/2 is a quarter-turn ball valve designed for various pumping applications. This three-piece valve features an EzPress x rotating pump flange connection and a full port design, allowing for maximum flow. With a pressure rating of six hundred pounds water over ground, it is suitable for high-demand hydraulic tasks.

• Pressure Rating: 600 lb WOG
• Full Port Design for Maximum Flow
• Chrome Plated Brass Ball for Durability

Product Highlights

This valve is ideal for use in plumbing and heating systems, ensuring efficiency and reliability. Its compact design and robust construction make it a suitable fit for various setups.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Series: 2420F

Technical Specifications

• Actuator Type: Wing Handle
• Body Material: Brass
• Ball Material: Chrome Plated Brass
• Inlet to Outlet Length: 4.79 inches
• Nominal Size: 1.5 inches
• Orifice Size: 1.46 inches
• End Style: EzPress x Rotating Pump Flange
• Port Type: Full
• Softgoods Material: PTFE/FKM/EPDM
• Top to Inlet Center: 2.87 inches
• Trim Material: Brass Stem and PTFE Seat
