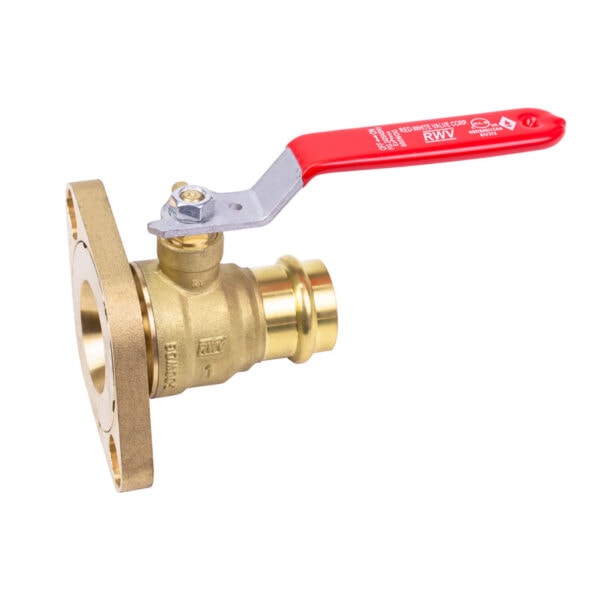

Red-White Valve 2420ABHV Ball Valve

Product Description

The RED-WHITE VALVE 2420ABHV is a ball valve with a DZR lead-free brass body and a chrome-plated ball. It features a full port, quarter-turn operation, and virgin PTFE seats. The valve has a blow-out proof stem and a 3-piece construction with EzPress x Flange. It includes a bolt kit, wing handle, and gasket.

• 250# WOG
• DZR lead free brass body
• Full port

Product Highlights

This ball valve features a rotating flange design with slotted holes for compatibility with standard and high-velocity pumps. It is AB 1953, NSF/ANSI/CAN 61 & 372 certified.

Product Information

Standard Information

• Brand: RED-WHITE VALVE
• Manufacturer Part Number: 2420ABHV 1

Technical Specifications

• Material Part 1: Body DZR Lead Free Brass ASTM B927 C27453
• Material Part 2: Flange Brass ASTM B283 C37700
• Material Part 3: Ball DZR Lead Free Brass ASTM B927 C27453
• Material Part 4: Seat PTFE
• Material Part 5: Fixed End DZR Lead Free Brass ASTM B927 C27453
• Material Part 6: O-Ring EPDM Perox NSF Approved
• Material Part 7: Stem DZR Lead Free Brass ASTM B927 C27453
• Material Part 8: Packing Ring PTFE
• Material Part 9: Packing Nut Brass ASTM B124 C37700
• Material Part 10: Red Handle Fig. 2412ABHV Steel / Dacromet Plated ASTM A36
• Material Part 11: Nut Steel / Zinc Plated ASTM A36
• product-type: Ball Valve
• Category: Lead Free
• WOG: 250#
