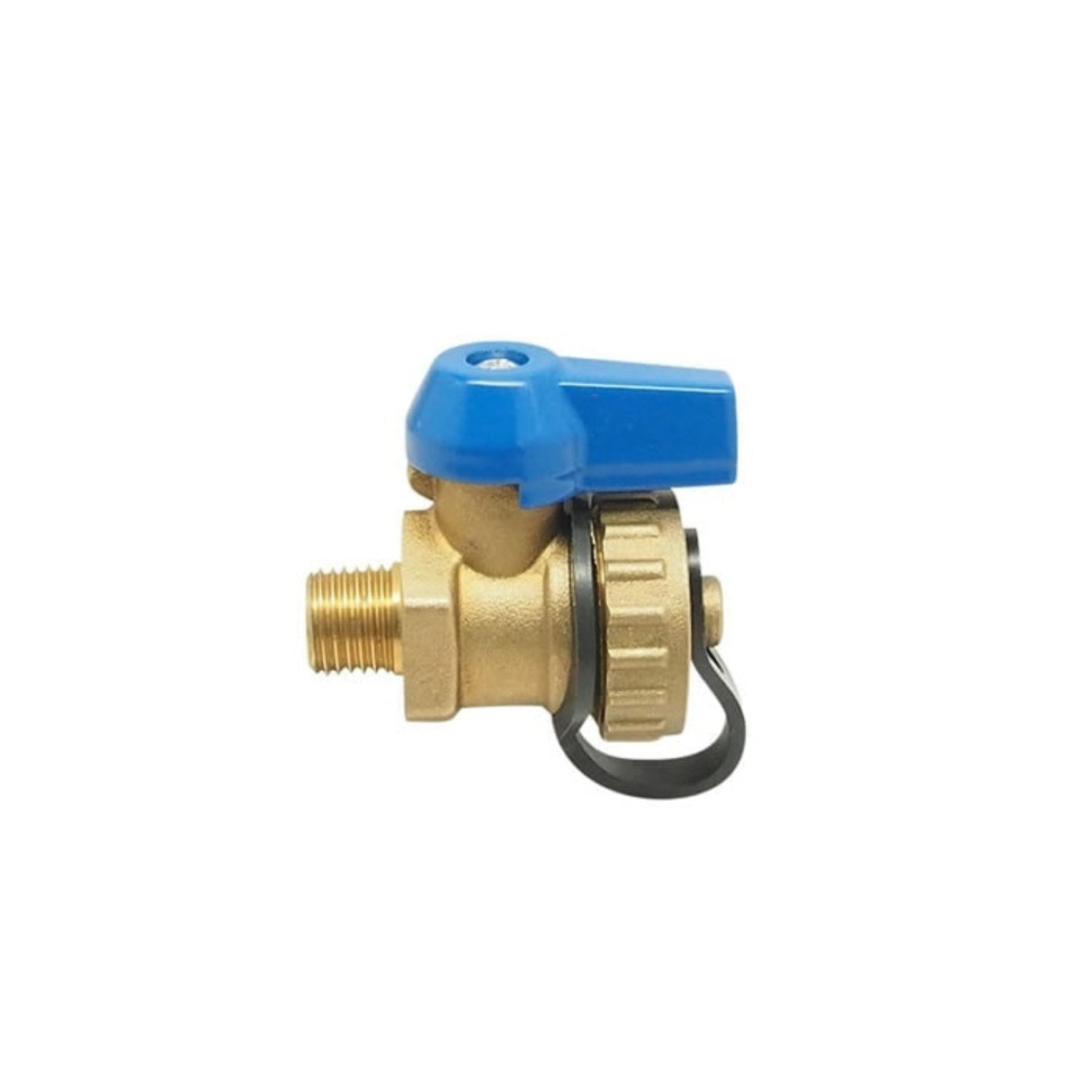

Red-White Valve 241DV 1/4 Brass Drain Valve (1/4 inches Mnpt x Hose End)

Product Description

Red-White Valve 241DV 1/4 is a brass drain ball valve intended for boiler drains, hydronic loops, water heaters, and HVAC service points. The valve has a 1/4" Mnpt male inlet and hose-end outlet, a precision-cast B124 C37700 brass body, chrome-plated brass ball and PTFE seats. It is rated 400 PSI WOG, operates from 14 °F to 248 °F, and includes a screw-on brass drain cap with EPDM Perox gasket.

• 400 PSI WOG pressure rating; operating temperature range 14 °F to 248 °F
• Connection: 1/4" Mnpt male inlet x hose-end outlet; includes screw-on brass drain cap
• Construction: B124 C37700 brass body, chrome-plated brass ball, PTFE seats, EPDM Perox O-rings and PTFE packing rings

Product Highlights

Brass drain ball valve for boiler and HVAC service with 1/4" Mnpt inlet, hose-end outlet, 400 PSI WOG rating, and EPDM/PTFE sealing

Product Information

Standard Information

• Brand: RED-WHITE VALVE
• Manufacturer Part Number: 241DV 1/4

Technical Specifications

• Brand: RED-WHITE VALVE
• MPN: 241DV 1/4
• Series: 241DV
• SKU: 30078379
• Alternate SKU: 783446
• Type: Drain ball valve with cap
• Connection: 1/4" MNPT (male) inlet x hose end outlet
• Body material: Brass (B124 C37700)
• Ball material: Brass, chrome-plated
• Seats: PTFE
• Seals: EPDM Perox O-rings and PTFE packing rings
• Handle: Aluminum
• Screw: Steel, zinc plated
• Drain cap: Brass with EPDM Perox gasket
• Pressure Rating: 400 PSI WOG
• Temperature Range: 14 °F to 248 °F
• Intended Applications: Boilers, hydronic loops, water heaters, HVAC service points
• Category: Ball Valve
