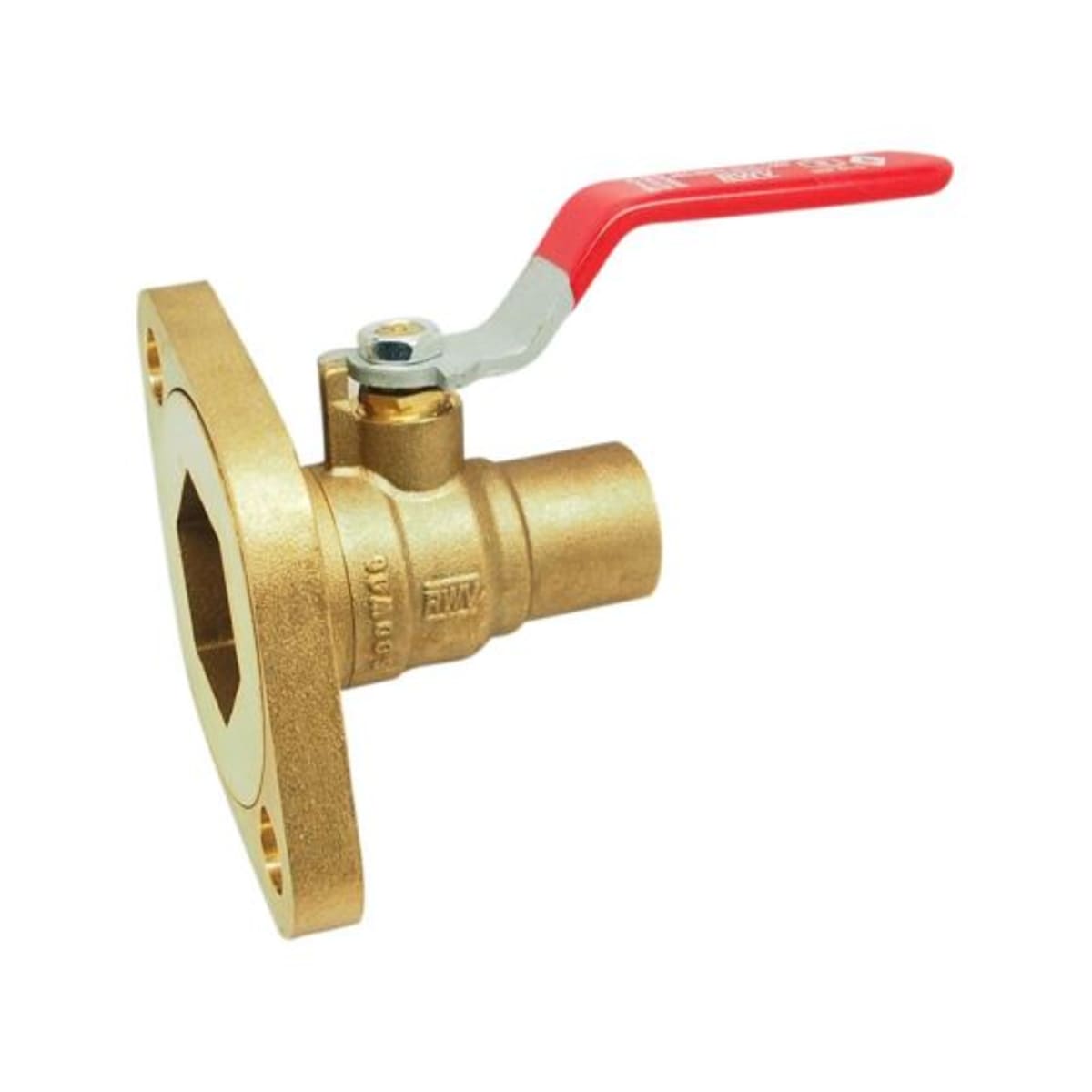

Red-White Valve 2419AB2 Low Lead Pump Flange Ball Valve SWT x 2-Bolt

Product Description

The Red-White Valve 2419AB2 is a low lead pump flange ball valve designed for effective flow control in plumbing systems. This valve features a quarter-turn operation for easy handling and a durable construction tailored for longevity. It is constructed with a brass body and chrome plated brass ball, suitable for various applications.

• Quarter-turn ball valve for easy operation
• Full port design for maximum flow
• Compatible with Solder x Rotating Pump Flange connections

Product Highlights

This valve is ideal for hydronic heating systems, providing a reliable shut-off and ensuring safety in water supply lines.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Type: 3-Piece Standard

Technical Specifications

• Actuator Type: Wing Handle
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: Solder x Rotating Pump Flange
• Inlet to Outlet Length: 5.19 inches
• Nominal Size: 2 inches
• Orifice Size: 1.95 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG
• Softgoods Material: PTFE/FKM
• Top to Inlet Center: 3-1/4 inches
• Trim Material: Low Lead Brass Stem and PTFE Seat
• Series: 2419AB
