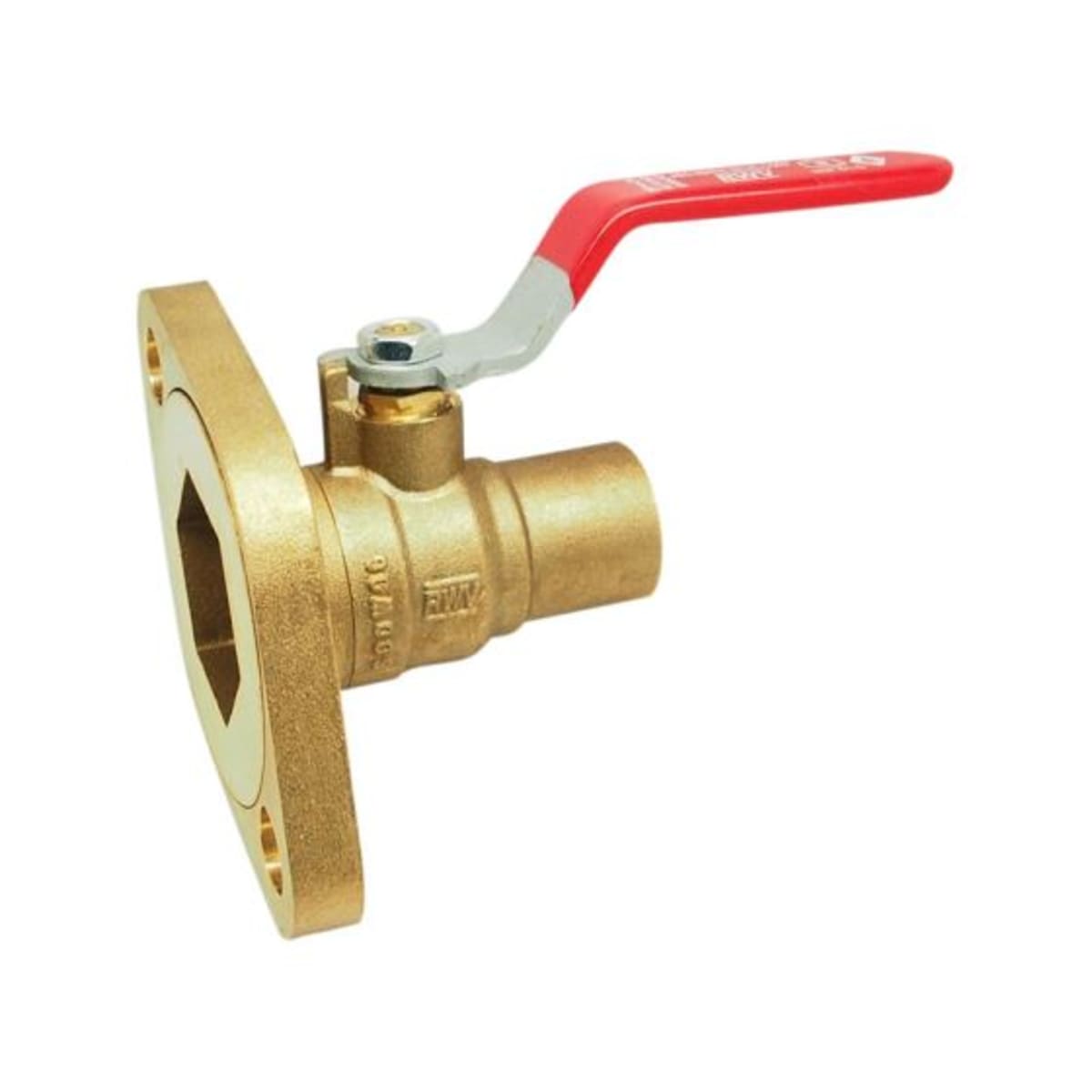

Red-White Valve 2419AB 3/4 Low Lead Pump Flange Ball Valve

Product Description

The Red-White Valve 2419AB 3/4 is a quarter-turn ball valve designed for reliable performance in plumbing applications. This valve features a three-piece standard construction with a solder x rotating pump flange connection.

• Positive shut-off mechanism
• Made with low lead brass
• Includes PTFE packing and FKM O-ring for durability

Product Highlights

This valve is suitable for water service and suitable for various installation setups. It can handle a pressure rating of 600 lb WOG and features a full-port design for maximum flow.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Model/Series: 2419AB

Technical Specifications

• Nominal Size: 3/4 inch
• Orifice Size: 0.73 inch
• Material: Chrome Plated Brass (Ball), Brass (Body)
• End Style: Solder x Rotating Pump Flange
• Pressure Rating: 600 lb WOG
• Actuator Type: Wing Handle
• Length from Inlet to Outlet: 2.73 inches
• Distance from Top to Inlet Center: 2.07 inches
• Trim Material: Low Lead Brass Stem and PTFE Seat
• Standards/Approval: AB1953, ANSI NSF 61-G/372
