Red-White Valve 2419AB 1-1/2 Low Lead Pump Flng Bll Vlv SWT

Product Description

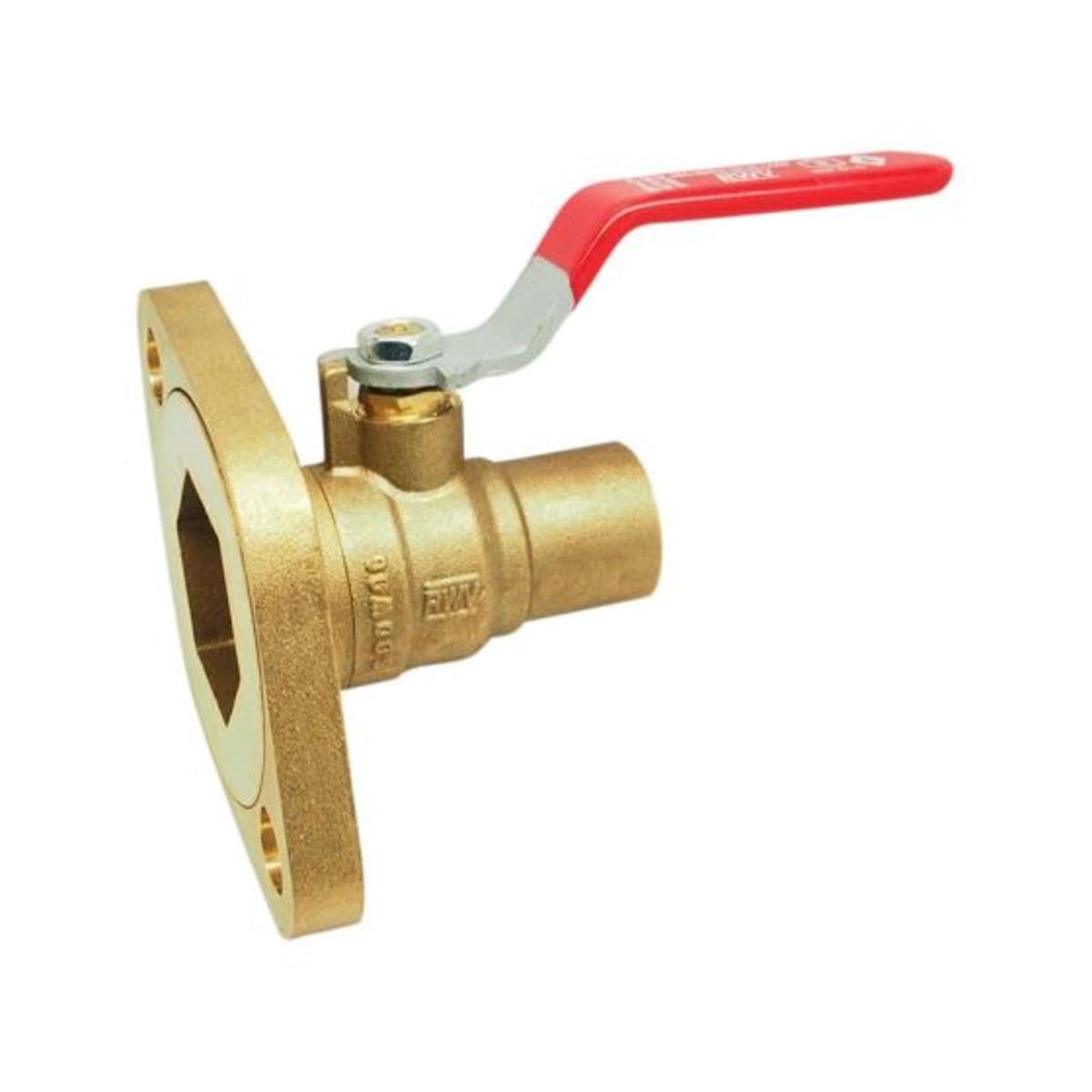

The Red-White Valve 2419AB1-1/2 is a quarter-turn ball valve. It is designed with a solder x rotating pump flange. This valve can handle pressures up to 600 lb WOG. It features a full port allowing for maximum flow capacity. The valve is made with chrome plated brass and includes a wing handle actuator. A low lead brass stem and PTFE seat trim enhance its durability.

• Three-piece standard body construction
• Positive shut-off capability
• Includes a bolt kit

Product Highlights

This valve is reliable for various plumbing applications. It ensures effective control in fluid systems.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Nominal Size: 1-1/2 in

Technical Specifications

• Actuator Type: Wing Handle
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: Solder x Rotating Pump Flange
• Inlet to Outlet Length: 4.6 in
• Orifice Size: 1.46 in
• Port Type: Full
• Pressure Rating: 600 lb WOG
• Series: 2419AB
• Softgoods Material: PTFE/FKM
• Top to Inlet Center: 2.87 in
• Trim Material: Low Lead Brass Stem and PTFE Seat
• Type: 3-Piece Standard
