Red-White Valve 24151-1/2 SWT Pump Flange Ball W/DRAIN

Product Description

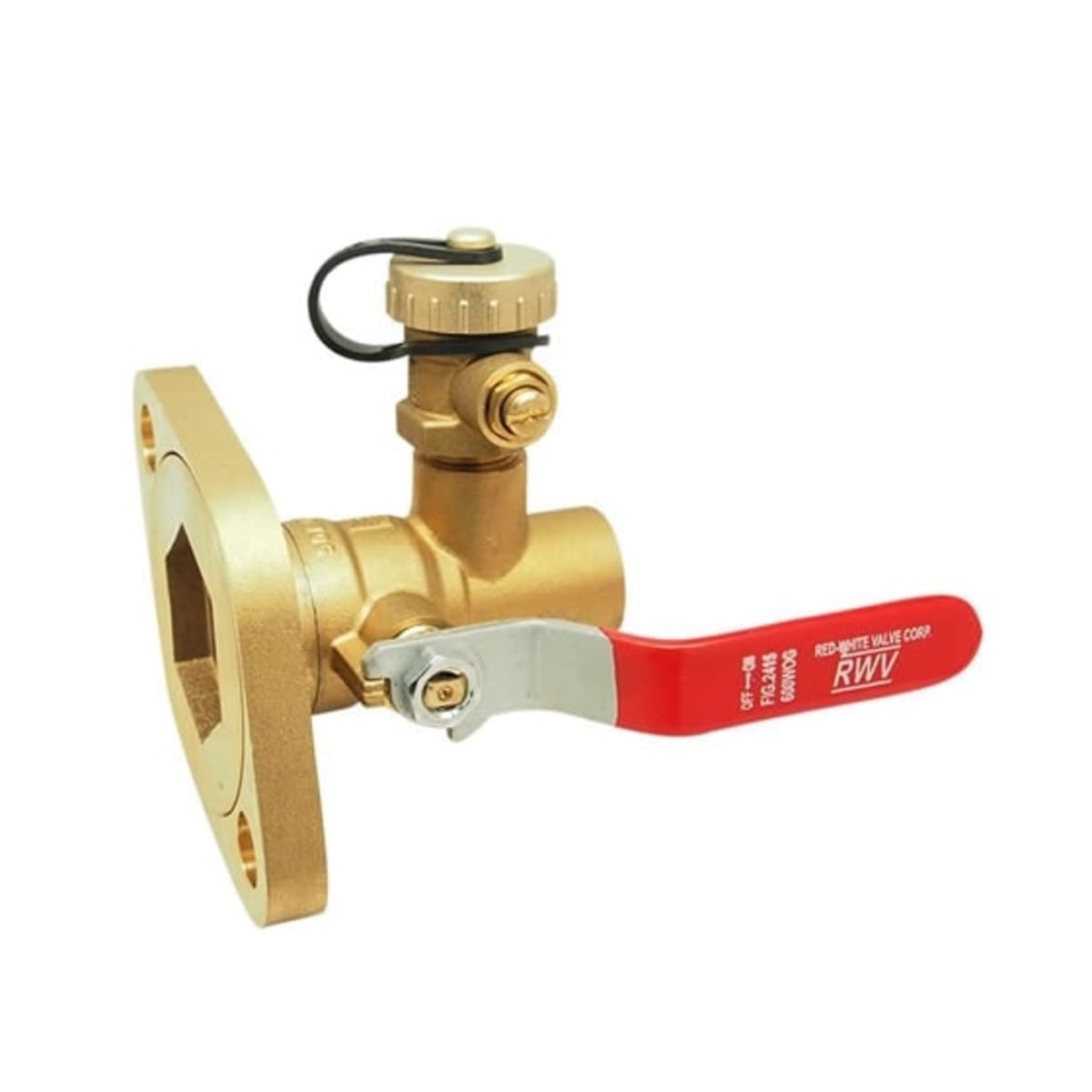

The Red-White Valve 24151-1/2 is a quarter-turn ball valve designed for use in a variety of plumbing applications. This product features a three-piece standard design and accommodates a nominal size of one and one-half inches. It includes a fixed pump flange x solder connection and can withstand a pressure rating of six hundred pounds WOG.

• Full port design for maximum flow.
• Equipped with a wing handle actuator.
• Manufactured with a chrome-plated brass ball and EPDM packing.

Product Highlights

This valve is ideal for applications requiring reliable shut-off capabilities and features a side drain valve with a cap for easy maintenance.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Series: 2415

Technical Specifications

• Actuator Type: Wing Handle
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: Fixed Pump Flange x Solder
• Inlet to Outlet Length: Four and one-fourth inches
• Nominal Size: One and one-half inches
• Orifice Size: One point sixty-three inches
• Pressure Rating: Six hundred pounds WOG
• Softgoods Material: EPDM
• Trim Material: Brass Stem and PTFE Seat
