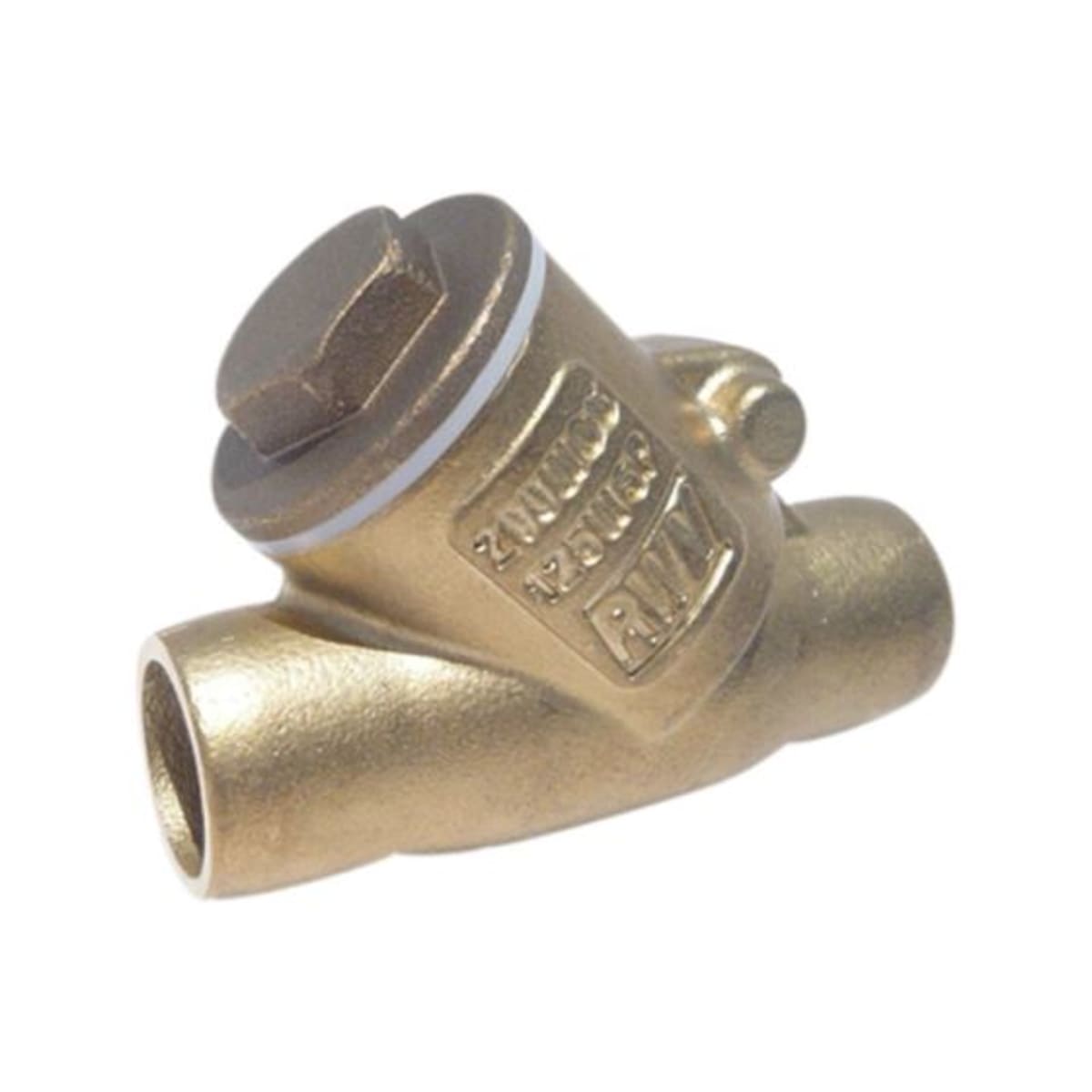

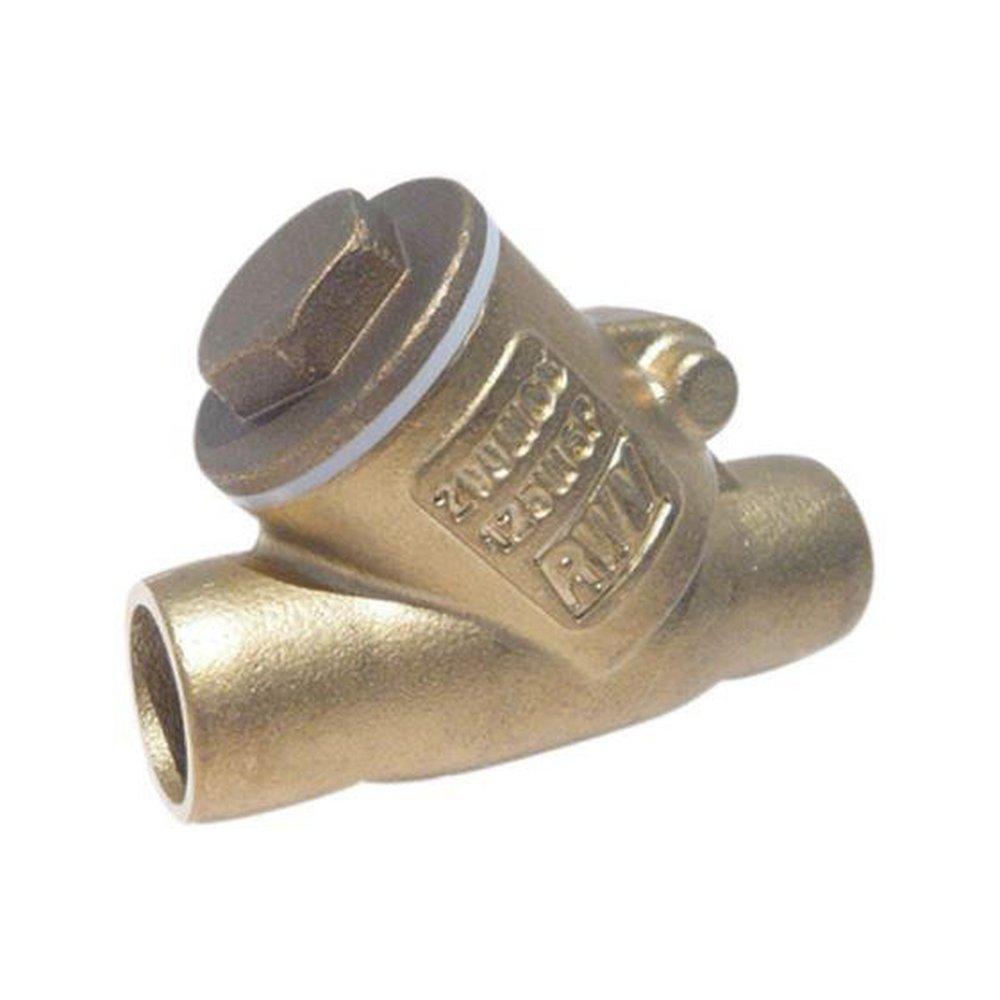

Red-White Valve 237AB 1-1/4 in Brass Solder Swing Check Valve

Product Description

The Red-White Valve 237AB 1-1/4 in Brass Solder Swing Check Valve is designed for reliable flow control in piping systems. This valve is made from lead-free brass and features solder connections to ensure secure fittings. It maintains high performance under varying pressures.

• Material: Low lead brass body and disc
• Pressure Rating: 200 psi and 200 lb WOG
• Low lead compliance ensures safety in water applications

Product Highlights

The design features a swing check mechanism which allows fluid flow in one direction while preventing backflow. The valve meets BAA requirements and is appropriate for water, oil, and gas systems.

Product Information

Standard Information

• Brand: Red-White Valve
• MPN: 237AB 1-1/4

Technical Specifications

• Type: Y-Pattern
• Body Material: Brass
• End Style: Solder Joint
• Nominal Size: 1-1/4 in
• Pressure Class: 200 lb WOG
• Pressure Rating: 200 psi
• Softgoods Material: Virgin PTFE
• Inlet to Outlet Length: 4.72 in
• Top to Inlet Center: 2.71 in
