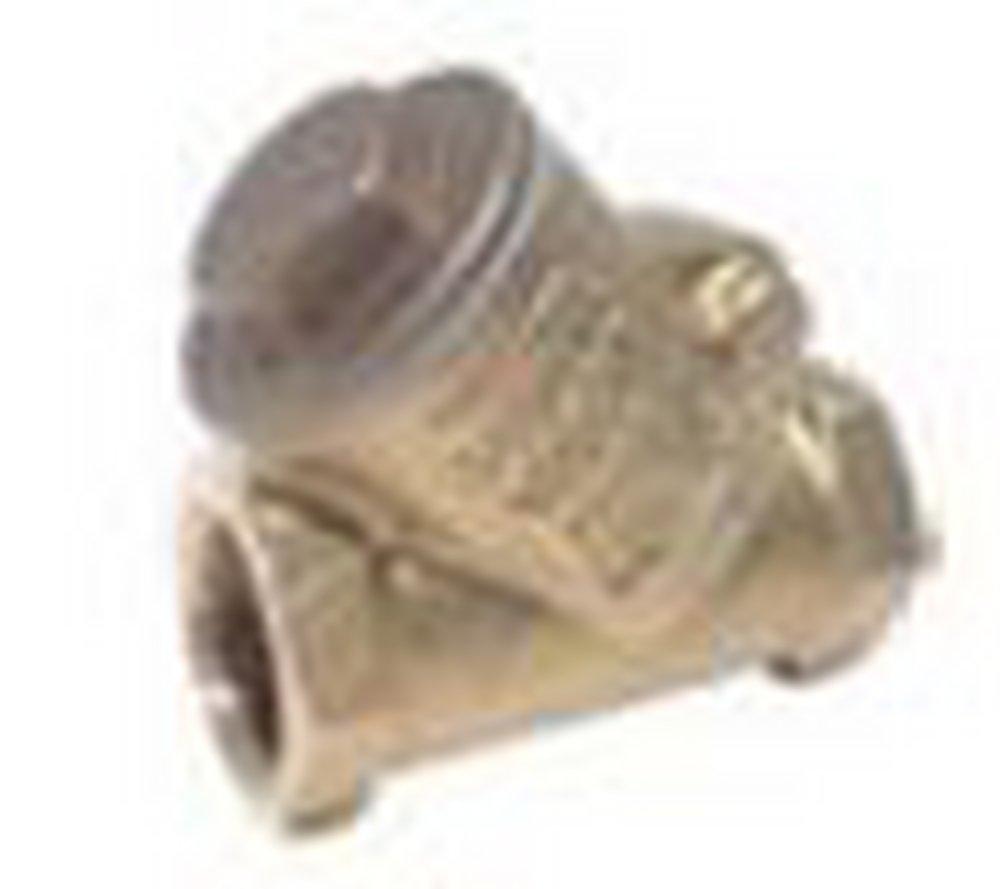

Red-White Valve 236AB 1 in. Brass FNPT Swing Check Valve

Product Description

The Red-White Valve 236AB is a brass FNPT swing check valve with a diameter of one inch. This valve is designed to prevent backflow and is suitable for various plumbing applications.

• Constructed from low lead brass for safety.
• Compatible with temperatures from fifteen to one hundred sixty degrees Fahrenheit.
• Features a virgin PTFE gasket for durability.

Product Highlights

This swing check valve is ideal for ensuring fluid moves in one direction only, preventing potential backflow.

Product Information

Standard Information

• Brand: Red-White Valve
• MPN: 236AB 1

Technical Specifications

• Body Material: Brass
• End Style: FNPT
• Inlet to Outlet Length: 3.15 inches
• Nominal Size: 1 inch
• Pressure Class: 200 lb WOG
• Pressure Rating: 200 psi
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Low Lead Compliance: Yes
• Softgoods Material: Virgin PTFE
• Top to Inlet Center: 2.28 inches
