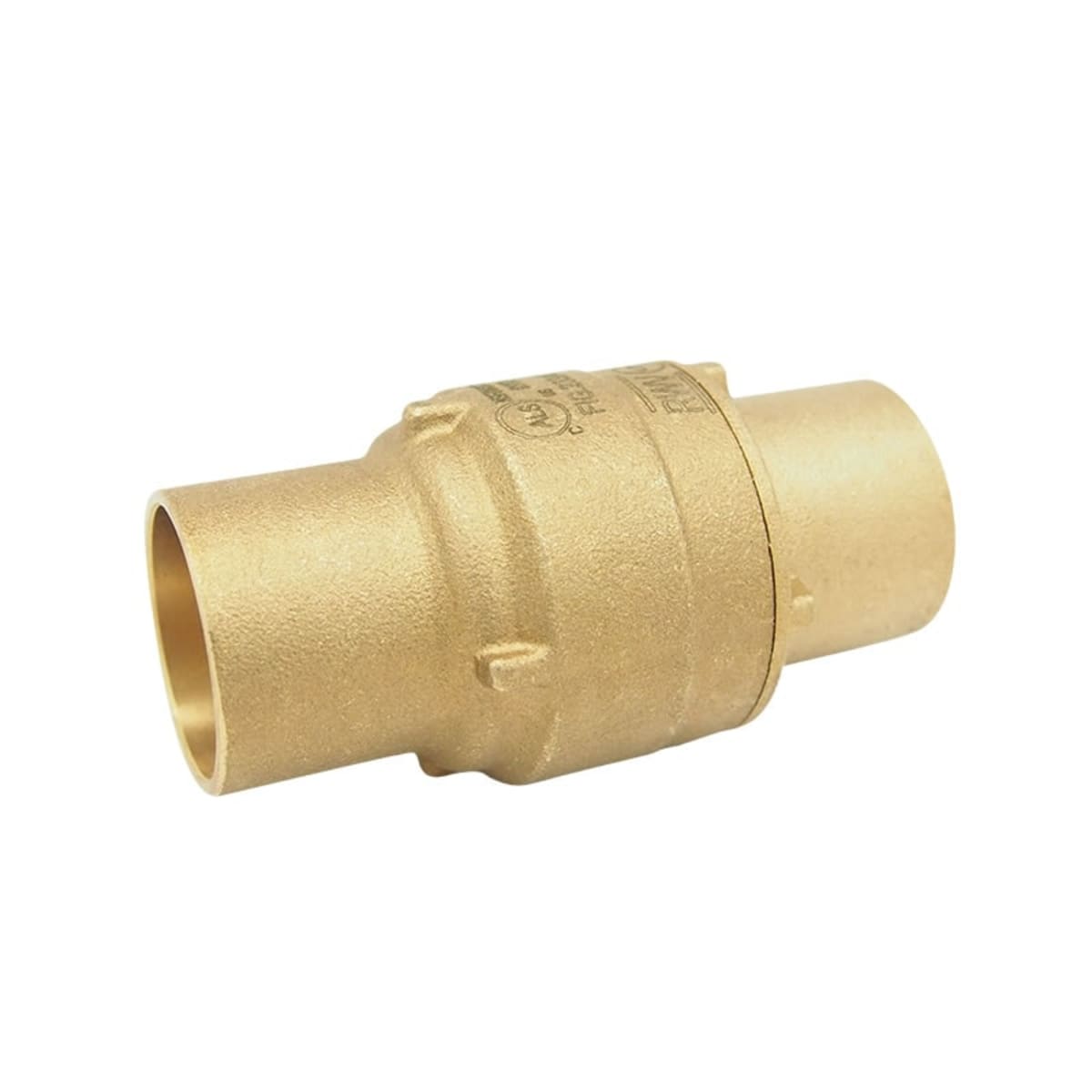

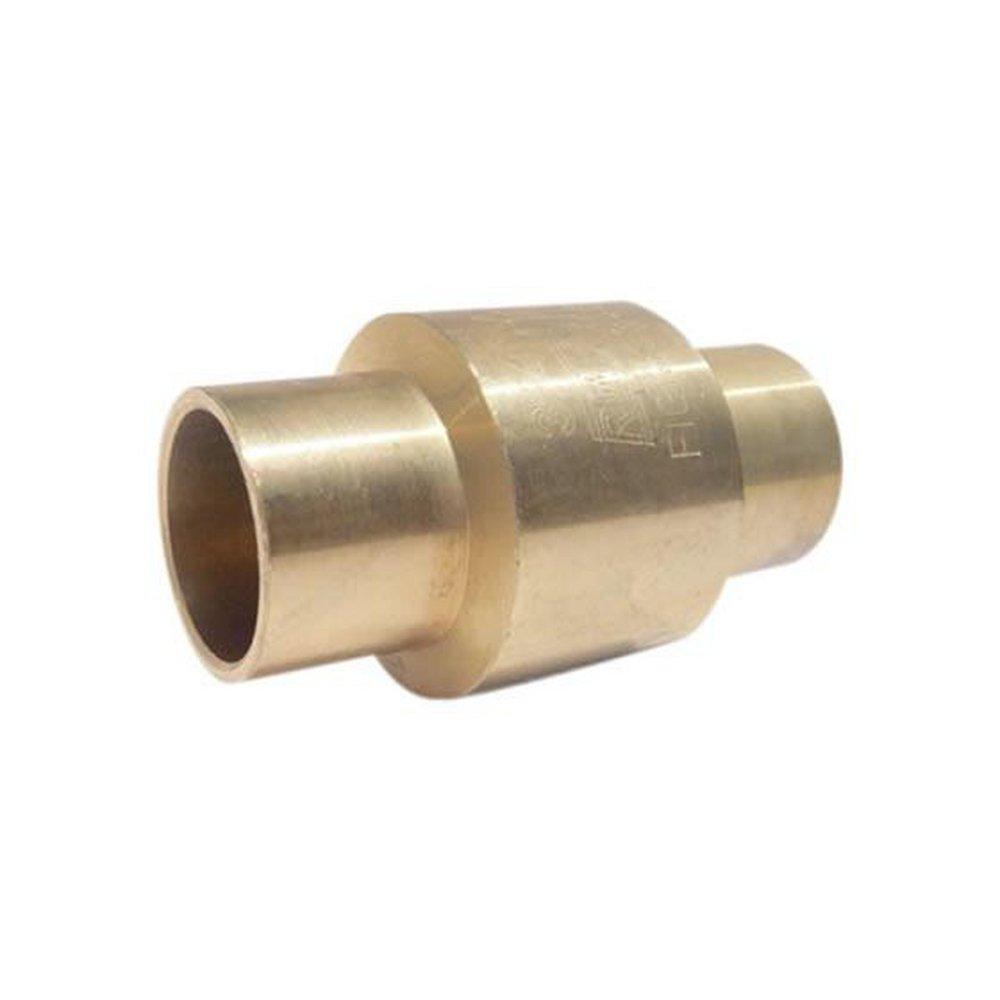

Red-White Valve 233AB 1-1/4 Brass Solder Check Valve

Product Description

The Red-White Valve 233AB 1-1/4 is a brass solder check valve designed for reliable fluid control. This component is essential in plumbing systems to prevent backflow and ensure proper flow direction. The valve is compliant with low lead regulations and features a spring-loaded mechanism for efficient operation.

• Low lead compliant brass material
• Horizontal or vertical installation options
• Spring-loaded fan for low noise operation

Product Highlights

This check valve operates effectively in various setups, providing versatility for HVAC, plumbing, and general fluid dynamics applications.

Product Information

Standard Information

• Brand: Red-White Valve
• MPN: 233AB 1-1/4

Technical Specifications

• Series: 233AB
• Nominal Size: 1-1/4 in
• Body Material: Forged Brass
• Trim Material: Brass/FPM
• End Style: Solder
• Connection Type: SWT x SWT
• Pressure Class: 200 lb WOG
• Low Lead Compliance: Yes
• Inlet to Outlet Length: 3.54 in
• Dimensions: 2.2 in diameter
• Actuator Type: Spring-Loaded Latch-Lock Handle
