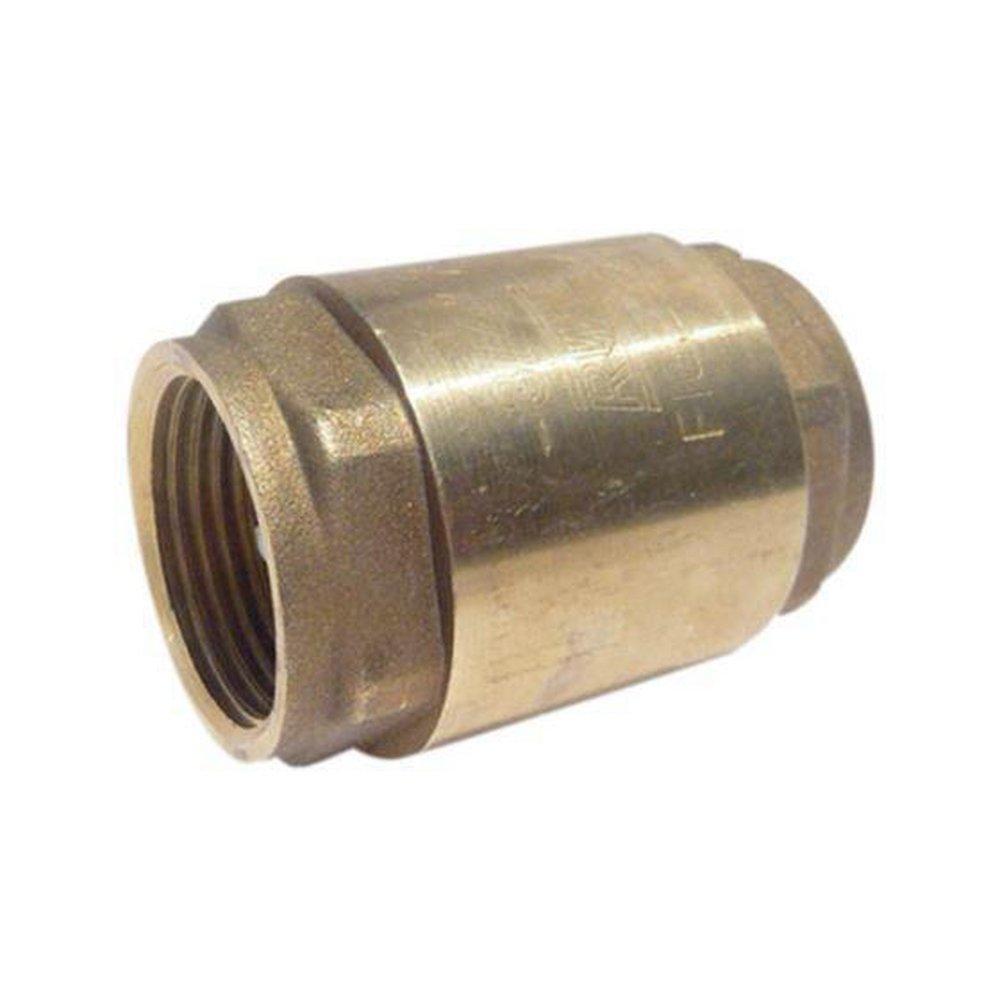

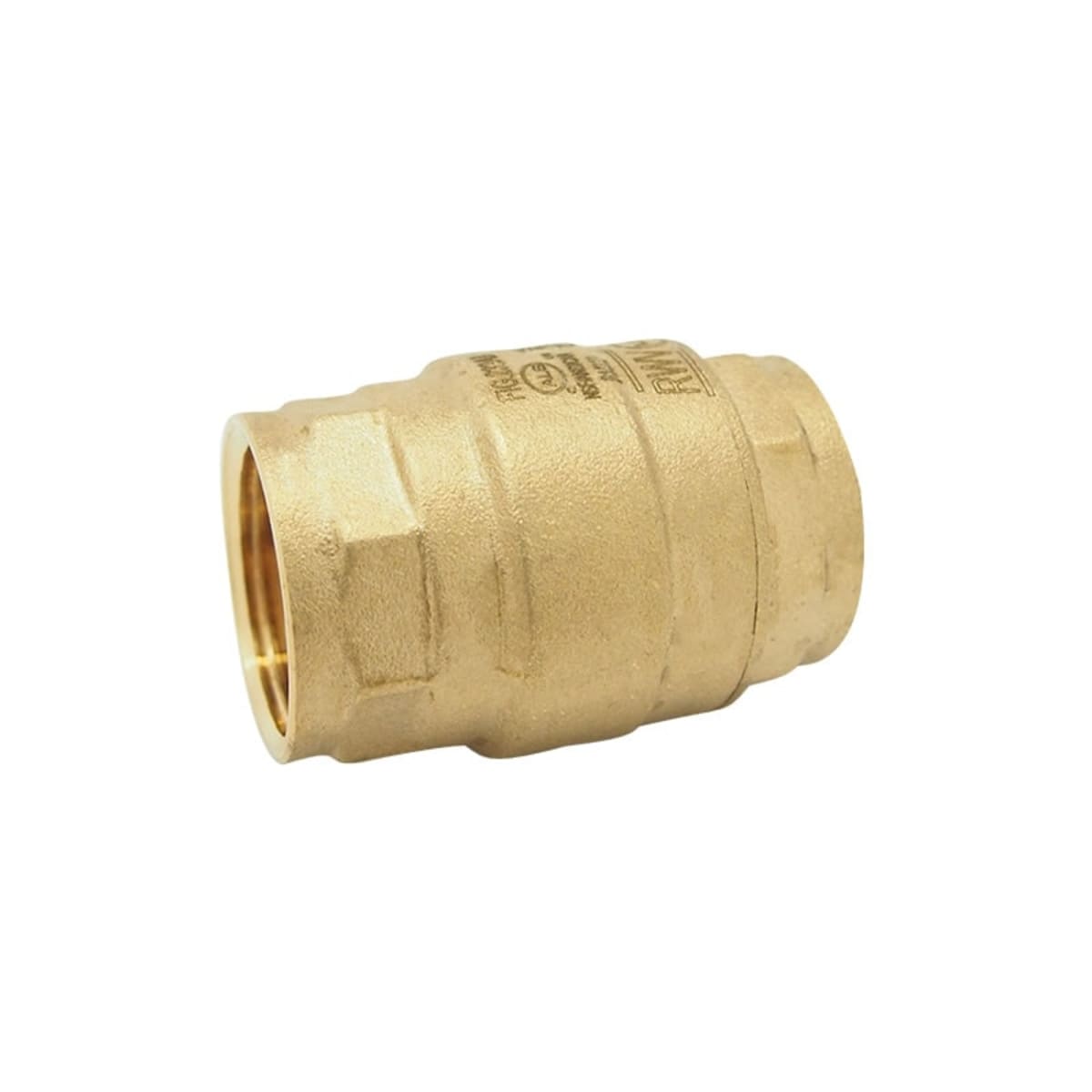

Red-White Valve 232AB 3/4 In. Brass FNPT Check Valve

Product Description

The Red-White Valve 232AB 3/4 inch Brass FNPT Check Valve is designed for reliability in plumbing applications. This valve prevents backflow in piping systems, ensuring smooth operation and system integrity.

• Threaded end style
• Spring-loaded design for effective sealing
• Low lead compliance for safe drinking water

Product Highlights

This check valve is suitable for both horizontal and vertical installations, featuring a low noise operation. It is made from forged brass for durability and longevity.

Product Information

Standard Information

• Manufactured By: Red-White Valve Corp
• Nominal Size: 3/4 inch

Technical Specifications

• Pressure Rating: 200 psi
• Pressure Class: 200 lb WOG
• Temperature Rating: 15 to 160 deg F
• Dimensions: 1.46 inch diameter
• Inlet to Outlet Length: 2.09 inches
• Softgoods Material: NBR Gasket
• Body Material: Forged Brass
• Trim Material: NBR/POM
