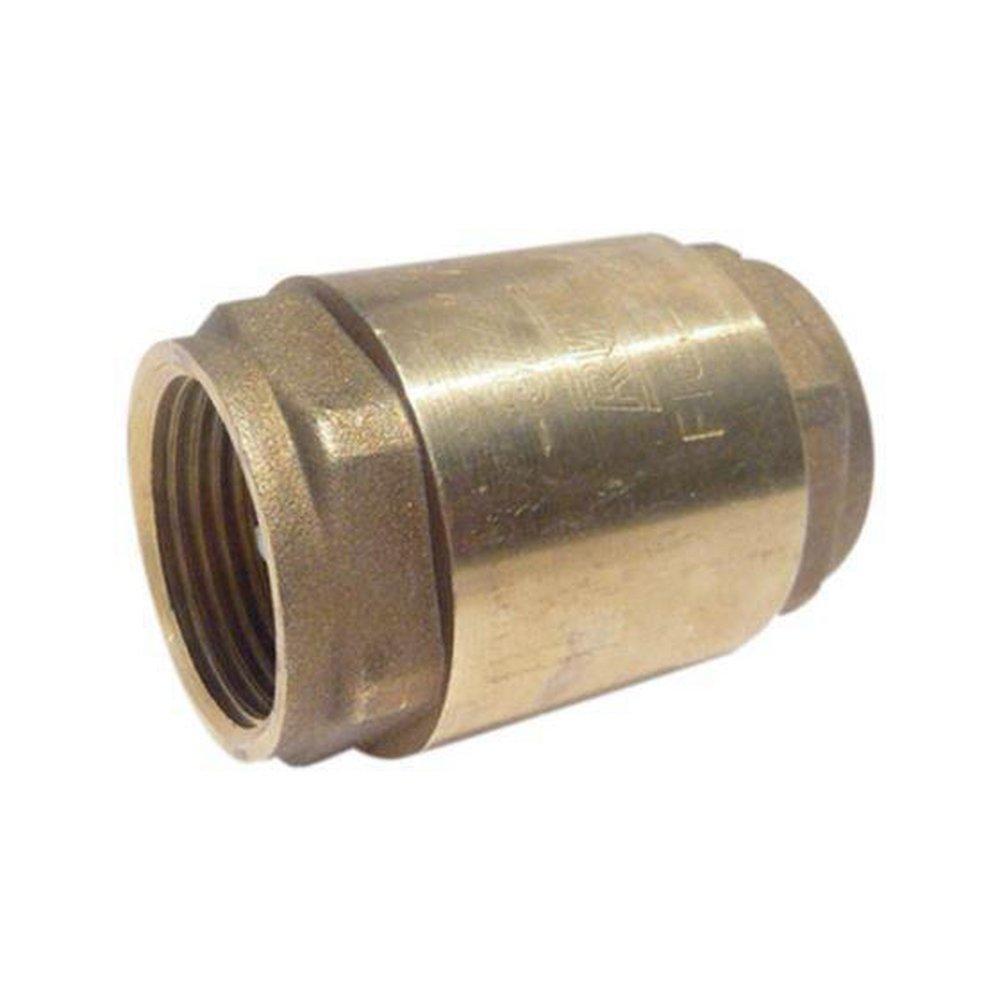

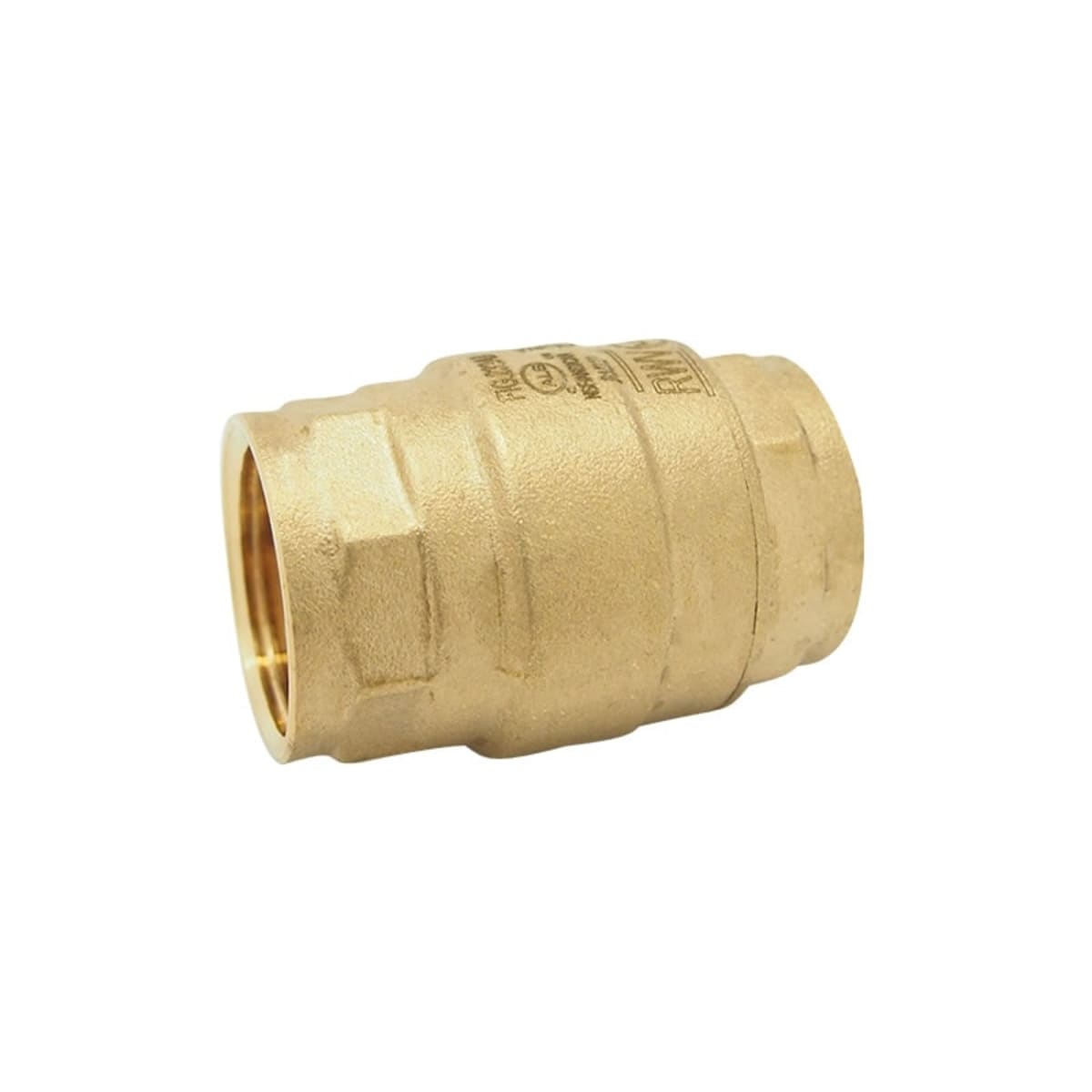

Red-White Valve 232AB 1-1/2 Brass FNPT Check Valve

Product Description

The Red-White Valve 232AB 1-1/2 is a durable brass FNPT check valve designed for reliable performance in various plumbing systems. It features low lead compliance, making it suitable for potable water applications. This check valve operates effectively under a pressure rating of two hundred psi.

• Low noise operation
• Spring-loaded latch-lock handle
• Versatile installation options: horizontal or vertical

Product Highlights

This in-line check valve meets ANSI/NSF 61-G standards, ensuring safe use in drinking water systems. It includes a plastic disc and NBR soft seat for enhanced sealing and efficiency.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Part Number: 232AB 1-1/2

Technical Specifications

• Actuator Type: Spring-Loaded Latch-Lock Handle
• Body Material: Forged Brass
• Connection Size: 1-1/2 inches
• Connection Type: FIP x FIP
• Pressure Rating: 200 psi
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Dimensions: 2.47 inches diameter
• Inlet to Outlet Length: 2.76 inches
• Low Lead Compliance: Yes
• Pressure Class: 200 lb WOG
• Trim Material: NBR/POM
• Softgoods Material: NBR Gasket
