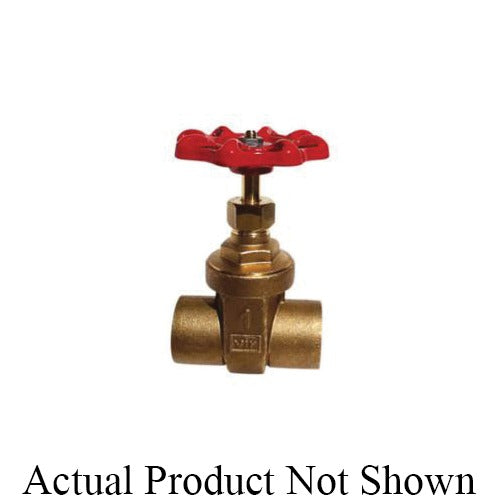

Red-white Valve 207AB 3/4 Gate Valve 3/4 Inch Solder

Product Description

The RED-WHITE VALVE 207AB 3/4 is a 3/4-inch nominal gate valve designed for full-bore flow control in plumbing and hydronic systems. Built with a brass body and operated by a handwheel actuator, this valve opens and closes by raising or lowering a gate element across the flow path. The solder end style allows direct sweat connection to copper pipe, making it a standard choice for licensed plumbers working on residential and light commercial water distribution, heating, and cooling systems. Gate valves of this type are used where a straight-line flow with minimal restriction is required and where frequent cycling is not expected.

This valve is suited for residential and light commercial plumbing installations where copper pipe is the predominant material. Typical applications include isolation service on domestic hot and cold water lines, hydronic heating supply and return lines, and similar low-cycle shut-off duties. The handwheel actuator provides manual, tool-free operation, and the brass body offers solid corrosion resistance in water service environments. It is installed by licensed plumbers following IPC or applicable local plumbing codes.

Key Features

• 3/4-inch nominal size fits standard 3/4-inch copper pipe with solder end connections
• Brass body construction provides corrosion resistance in water service applications
• Solder (sweat) end style allows clean, leak-resistant copper pipe connections
• Handwheel actuator allows manual operation without additional tools
• Gate-style design delivers full-bore flow with minimal pressure drop when fully open

Compatibility

Designed as an OEM-style replacement or new-installation gate valve for 3/4-inch copper pipe systems in residential and light commercial plumbing and hydronic heating applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line before soldering. Allow the valve body to cool completely after sweating connections before pressurizing the system, as excessive heat during soldering can damage internal seals. Gate valves are intended for full-open or full-closed service and should not be used for throttling flow.

Technical Specifications

• Nominal Size: 3/4 inches
• End Style: Solder (Sweat)
• Body Material: Brass
• Actuator Type: Handwheel
• Valve Type: Gate Valve

Standard Information

• Brand: RED-WHITE VALVE
• Manufacturer Part Number: 207AB 3/4
