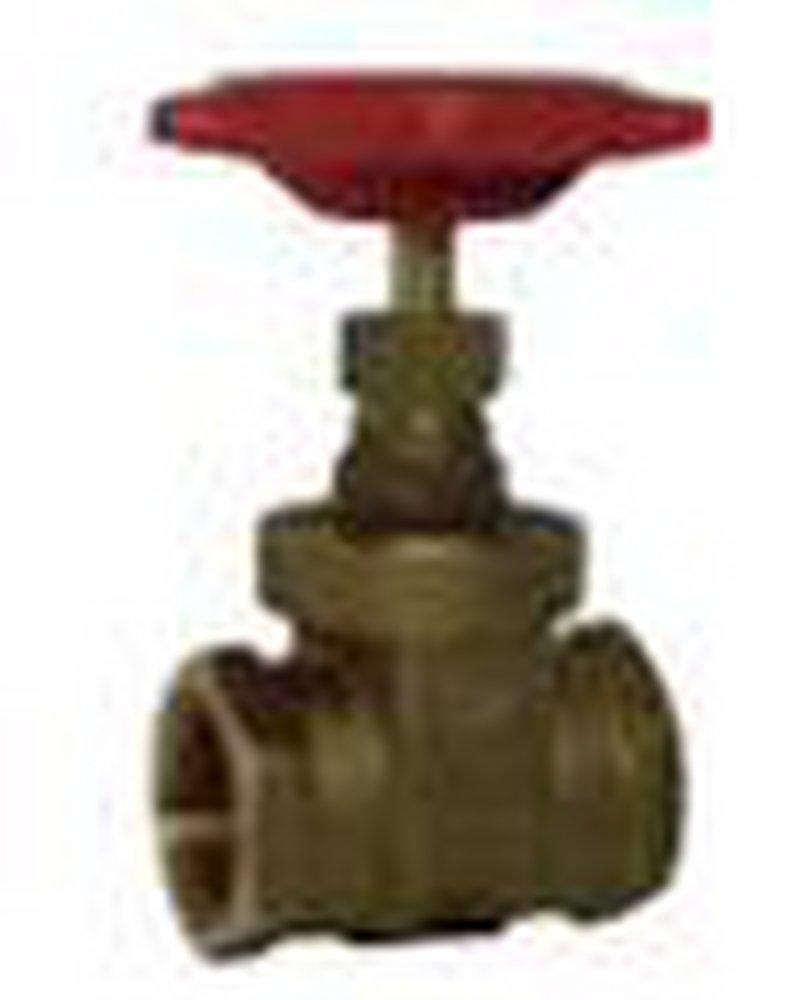

Red-White Valve 206AB Lead Free Threaded Gate Valve 2 in

Product Description

The RED-WHITE VALVE 206AB is a lead-free threaded gate valve with a lead-free brass body and FNPT x FNPT connections. It is designed for 125# WSP / 200# WOG applications. This valve is AB1953, NSF/ANSI 61 & 372 certified and meets BAA requirements. It features threaded ends (ASME B1.20.1-NPT) and a screw-in bonnet.

• Lead free brass body
• FNPT x FNPT threaded ends (ASME B1.20.1-NPT)
• Non-rising stem

Product Highlights

This gate valve is ideal for gas, oil, and water applications requiring a reliable shutoff mechanism.

Product Information

Standard Information

• Brand: RED-WHITE VALVE
• Manufacturer Part Number: 206AB-2

Technical Specifications

• Type: Gate Valve
• Size: 2
• Body Material: Lead Free Brass
• Stem Material: Lead Free Brass
• Cv Coefficient: 304
• P,T Ratings: 200 psi from 32
• Actuator Material: Aluminum
• Wedge Material: Lead Free Brass
• Total Length: 3.23 in
• Height H: 6.27 in
• ANSI: ANSI 372, ANSI 61
• ASME: ASME B16.22
• ASTM: ASTM B124, ASTM B927 C28500
• Collection: 206AB
• End Connection 1: NPT
• End Connection 2: NPT
• End Connections: NPT
• Handle Material: Aluminum
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 3-23/100
• Material: Brass
• Maximum Temperature: 344
• NSF: NSF 372, NSF 61-G
• NSF Certified: Yes
• Pressure Class: 125#
• Recommended Valve Application: Gas, Oil, Water
• Valve Body Material: Brass
• Valve Body Style: 1 piece
• Valve Bonnet Type: Screw-in
• Valve Disc Material: Aluminum
• Valve Operator: Handwheel
• Valve Size: 2 in
• Valve Stem: Non-rising
• WOG Rating: 200 psi
• Stem Type: Non-Rising
• Valve Operation: Manual
• WSP Rating: 125 psi
• Diameter: 2 in
