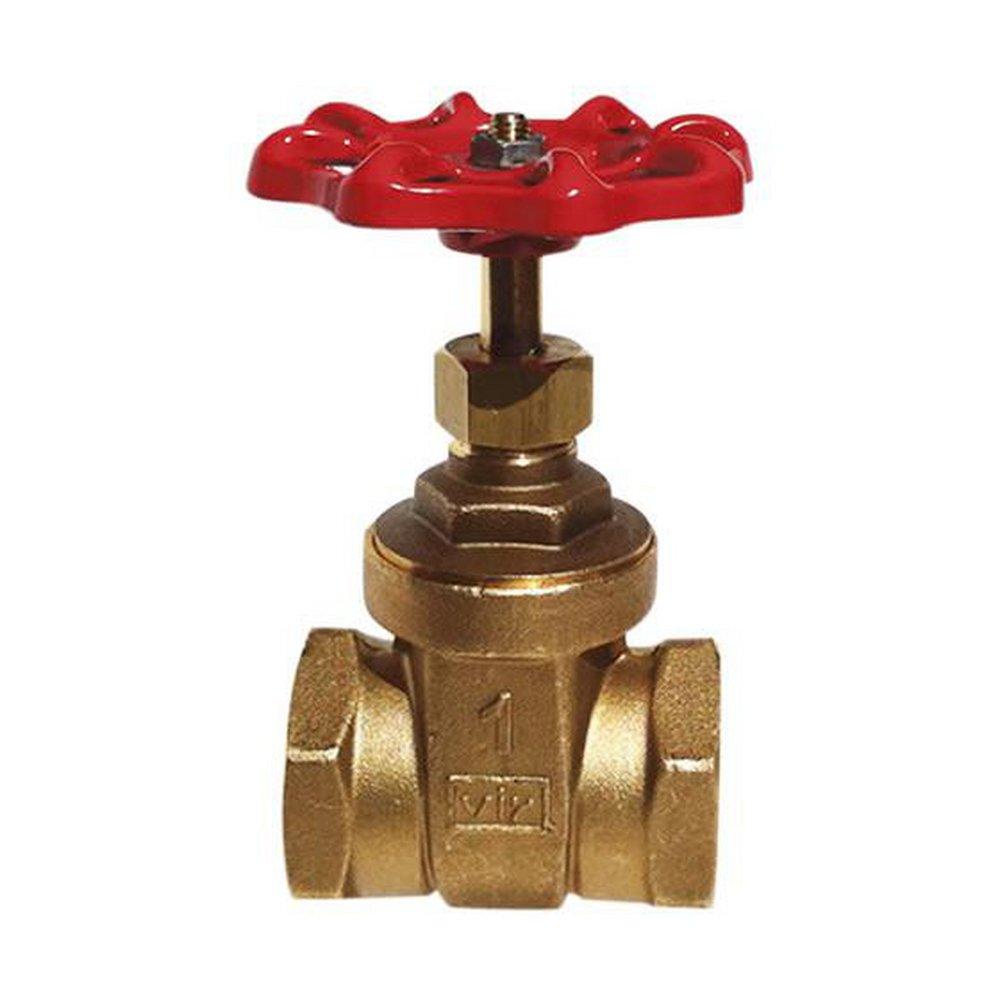

Red-White Valve 206AB-12 Gate Valve 1-1/2 in. NPT

Product Description

The RED-WHITE VALVE 206AB-12 is a brass gate valve with a 1-1/2 in. NPT connection. It features a brass body, solid disc, threaded ends, and a non-rising stem. This valve is suitable for gas, oil, and water applications. It adheres to ANSI 372, ANSI 61, ASME B16.22, ASTM B124, and ASTM B927 C28500 standards.

• Brass body
• Solid Disc
• Threaded Ends
• Non-rising stem

Product Highlights

Brass gate valve with NPT connection, ideal for gas, oil, and water applications.

Product Information

Standard Information

• Brand: RED-WHITE VALVE
• Manufacturer Part Number: 206AB-12

Technical Specifications

• ANSI: ANSI 372, ANSI 61
• ASME: ASME B16.22
• ASTM: ASTM B124, ASTM B927 C28500
• Collection: 206AB
• End Connection 1: NPT
• End Connection 2: NPT
• End Connections: NPT
• FM Approved: No
• Handle Material: Aluminum
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material: Brass
• Maximum Temperature: 344
• NSF: NSF 372, NSF 61-G
• NSF Certified: Yes
• Pressure Class: 125#
• Recommended Valve Application: Gas, Oil, Water
• UL Listed: No
• Valve Body Material: Brass
• Valve Body Style: 1 piece
• Valve Bonnet Type: Screw-in
• Valve Disc Material: Aluminum
• Valve Operator: Handwheel
• Valve Size: 1-1/2 in
• Valve Stem: Non-rising
• Valve Type: Gate Valve
