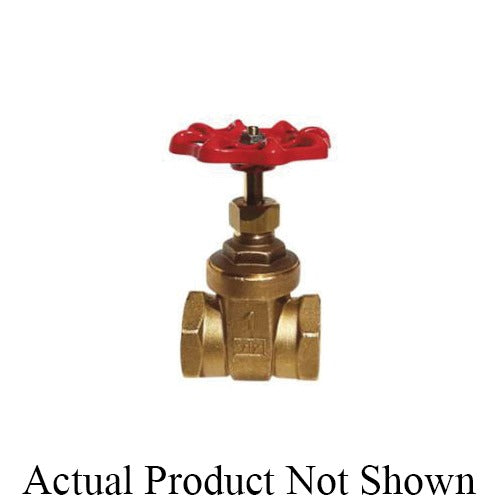

Red-white Valve 206AB 1-1/4 Brass Gate Valve 1-1/4 Inch

Product Description

The RED-WHITE VALVE 206AB 1-1/4 is a brass-body gate valve with a 1-1/4 inch nominal pipe size and threaded end connections. Gate valves in this class provide full-bore, low-restriction shutoff for liquid and gas service lines. The handwheel actuator allows manual operation with positive open and close positions. This valve is installed by licensed plumbers and mechanical contractors on residential and light commercial piping systems where a reliable, full-flow isolation point is required.

This valve is suited for installation on water supply lines, hydronic heating distribution piping, and general service plumbing where a 1-1/4 inch threaded isolation valve is specified. The threaded end style accepts standard NPT pipe connections, making it compatible with common iron and copper adapter fittings used in both new construction and retrofit applications.

Key Features

• 1-1/4 inch nominal pipe size for standard plumbing and hydronic applications
• Brass body construction for corrosion resistance in water and low-pressure gas service
• Threaded end style for direct NPT pipe connection without specialty tooling
• Handwheel actuator provides manual full-open and full-close operation
• Gate-style design delivers full-bore flow with minimal pressure drop when open

Compatibility

Designed as an OEM-style replacement or new-installation isolation valve for 1-1/4 inch NPT threaded plumbing and hydronic piping systems in residential and light commercial settings.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and relieve system pressure before removing any existing valve or fitting. Apply thread sealant or PTFE tape to all male NPT threads before assembly. Gate valves should be installed in the fully open or fully closed position during normal service and are not intended for throttling or flow regulation.

Technical Specifications

• Nominal Size: 1-1/4 inches
• End Style: Threaded (NPT)
• Body Material: Brass
• Actuator Type: Handwheel
• Valve Type: Gate

Standard Information

• Brand: RED-WHITE VALVE
• Manufacturer Part Number: 206AB 1-1/4
