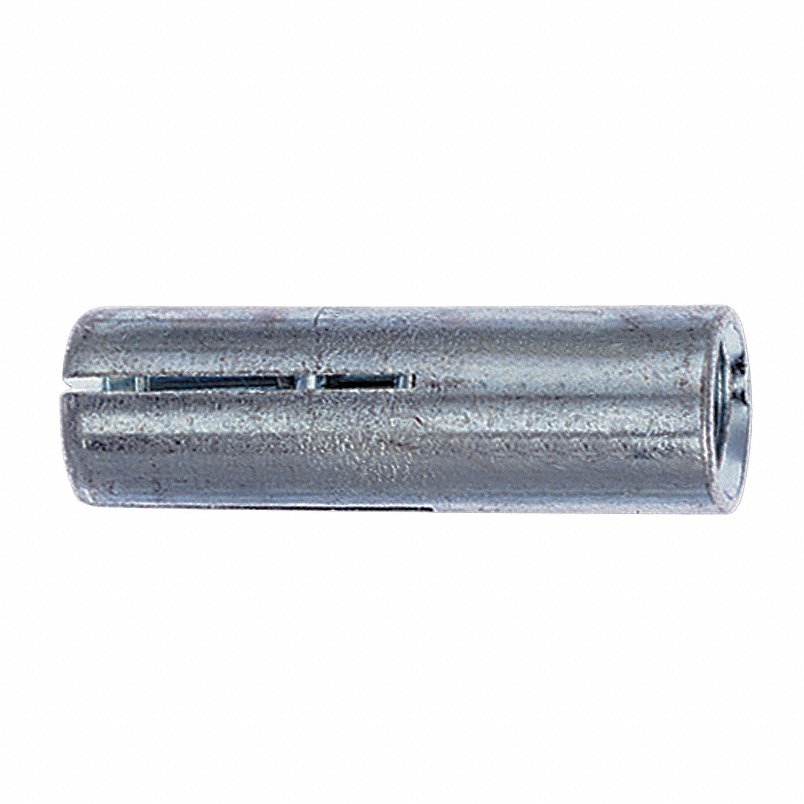

Red Head RL-38 3/8 DROP-IN ANCHOR

Product Description

The Red Head RL-38 is a drop-in anchor designed for concrete applications. It features an internally threaded shell made of steel. This anchor includes an expansion cone insert. It is suitable for installing in various concrete surfaces with a flush embedment lip.

• Easy installation using carbide tipped hammer drill bits
• Tested to meet strict ASTM E488 standards
• Suitable for multiple building codes and regulations

Product Highlights

This drop-in anchor provides a reliable fastening solution for concrete environments.

Product Information

Standard Information

• Manufacturer: Red Head
• UPC: Not Available

Technical Specifications

• Sub Brand: Multi-Set II
• Item Name: Drop-In Anchor Without Lip
• Type: Type RL, Non-Flange
• Diameter: 3/8 IN
• Thread Size: 3/8-16
• Thread Type: UNC
• Length: 1-5/8 IN
• Material: Steel
• Industry Standards: Tested To ASTM E488, UL And ICC-ES Listed
• Finish/Color: Zinc Plated
• Other Physical Dimensions: 1/2 IN Thread Depth, 1-5/8 IN Minimum Embedment Hole Depth, 1/2 IN Drill Bit Diameter
