Red Head RL-34 3/4 DROP-IN ANCHOR

Product Description

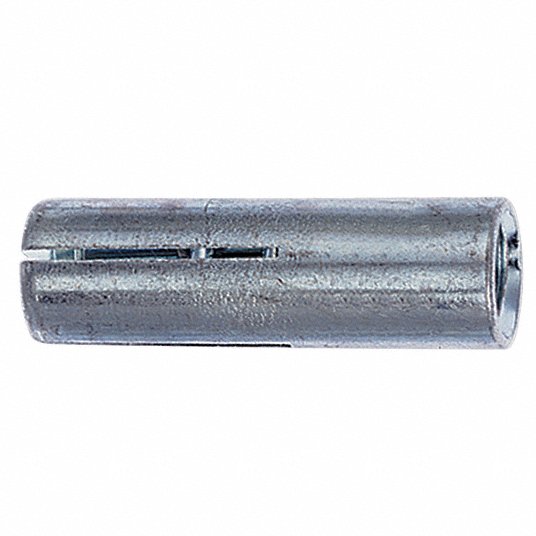

The Red Head RL-34 is a shell-type drop-in anchor designed for use in concrete. With a diameter of three-fourth inches, it features an internally threaded steel shell and an expansion cone insert. This anchor is essential for applications that require a secure hold in concrete structures.

• Designed for use with carbide-tipped hammer drill bits.
• Tested to ASTM E488 standards.
• Zinc plated finish for corrosion resistance.

Product Highlights

This drop-in anchor allows for below surface setting, which simplifies patchwork in concrete installs.

Product Information

Standard Information

• Manufacturer: Red Head
• Brand: Red Head

Technical Specifications

• Sub Brand: Multi-Set II
• Type: Type RL, Non-Flange
• Diameter: 3/4 inches
• Thread Size: 3/4-10
• Thread Type: UNC
• Length: 3-3/16 inches
• Material: Steel
• Finish/Color: Zinc Plated
• Other Physical Dimension: 1-1/4 inches Thread Depth, 3-3/16 inches Minimum Embedment Hole Depth, 1 inch Drill Bit Diameter
