Red Head RL-12 Multi-Set Lipless Drop-In Anchor 50 per Box

Product Description

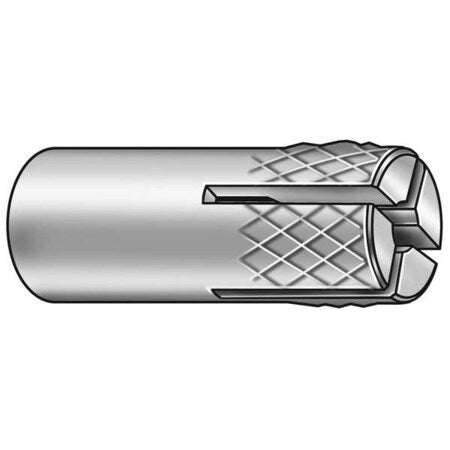

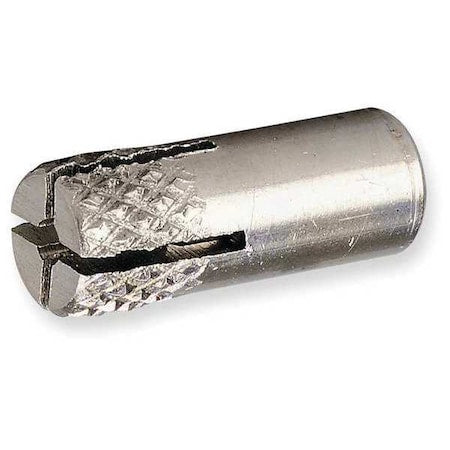

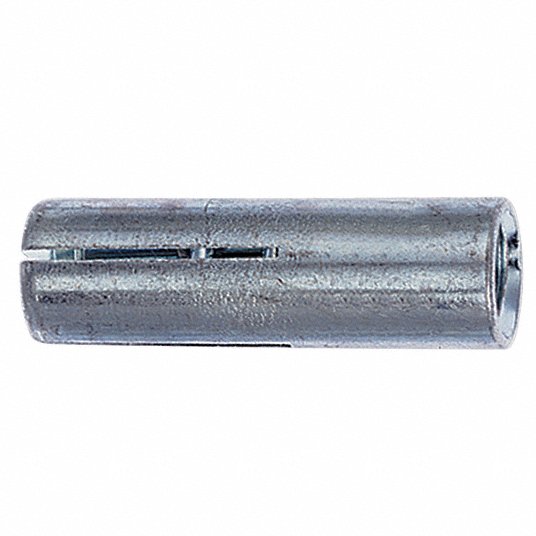

The Red Head RL-12 Multi-Set 1/2-Inch Lipless Drop-In Anchor features an internally threaded, all-steel shell with expansion cone insert. Designed for below-surface setting, it allows for easy patch work and offers higher performance potential with deep embedment setting. These anchors are manufactured from zinc-plated carbon steel and are installed with carbide-tipped hammer drill bits.

• Internally threaded, all-steel shell with expansion cone insert
• Below surface setting for easy patch work
• Higher performance potential with deep embedment setting

Product Highlights

Easy to install and inspect, these drop-in anchors are used for solid concrete or lightweight fill decks.

Product Information

Standard Information

• Brand: RED HEAD
• Manufacturer Part Number: RL-12
• Country of Origin: Viet Nam

Technical Specifications

• Corrosion Resistance Level: low
• Bolt Size: 1/2-Inch inch
• Threads per Inch: 13
• Drill Bit Diameter: 5/8 inch
• Thread Depth: 3/4 inch
• Embedment Min. Hole Depth: 2 inch
• Sub Brand: Multi-Set II
• Item Name: Drop-In Anchor Without Lip
• Type: Type RL, Non-Flange
• Diameter: 1/2 IN
• Thread Size: 1/2-13
• Thread Type: UNC
• Length: 2 IN
• Material: Steel
• Industry Standards: Tested To ASTM E488, Meets Or Exceeds U.S. Government G.S.A. Specification A-A-55614A Type-1 (Formerly GSA: FF-S-325 Group Vlll), UL And ICC-ES Listed, FM, Caltrans Approved
• Finish/Color: Zinc Plated
• Other Physical Dimension: 3/4 IN Thread Depth, 2 IN Minimum Embedment Hole Depth
• Anchor Dia. [Specifications]: 5/8 in
• Thread Depth [Specifications]: 3/4 in
• Anchor Length [Specifications]: 2 in
• Meets/Exceeds [Specifications]: A-A-55614
• Drill Bit Size [Specifications]: 5/8 in
• Anchor Material [Specifications]: Steel
• Fastener Finish [Specifications]: Zinc Plated
• Min. Hole Depth [Specifications]: 2 in
• Package Quantity [Specifications]: 50
• Agency Compliance [Specifications]: UL/FM
• Anchor Thread Size [Specifications]: 1/2"-13
• Drop-In Anchor Type [Specifications]: Non-Flange
• Country of Origin (subject to change) [Specifications]: Viet Nam
• Ultimate Shear in 4000 PSI Concrete (Lb.) [Specifications]: 4,580 lb
• Ultimate Tension in 4000 PSI Concrete (Lb.) [Specifications]: 5,480 lb
• System of Measurement: Inch
• Bolt or Rod Size: 1/2 in
• Flange Style: Flush
• Compatible Material: Concrete
• Anchor Type: Female Threaded
• Ultimate Tension Strength (4,000 psi Concrete): 5,840 lb
• Manufacturer Part Number: RL-12
• UNSPSC: 31162101
