Red Dot ALL-5 Conduit Body Power 1-1/2 Inch Replacement MPN

Product Description

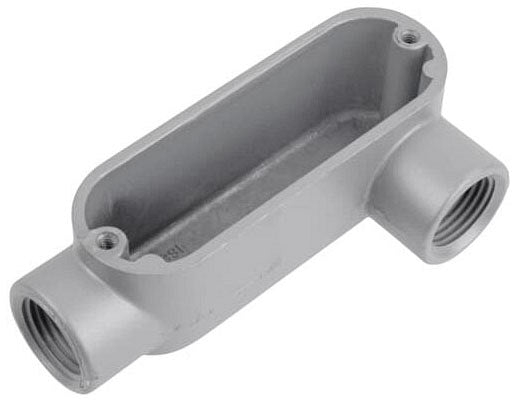

The Red Dot ALL-5 is a conduit body designed for use in electrical installations. This product has a hub size of one and one-half inches and is made from die-cast copper-free aluminum. It is suitable for use with rigid and intermediate metal conduit (IMC).

• Features a junction for branch conduits
• Maintains a weather-resistant conduit system when paired with covers and gaskets
• Includes retained stainless steel cover screws

Product Highlights

The Red Dot ALL-5 is designed to facilitate smooth wire pulling, providing a spacious wiring chamber.

Product Information

Standard Information

• Manufacturer: Red Dot
• UPC: 042269319301
• UNSPSC: 39131708

Technical Specifications

• Access Opening: Left Side
• Approval: UL E28688, CSA
• Configuration: LL
• Cover Type: Die-Cast, Screw-On
• Hub Location: 90 Degrees
• Hub Size: 1-1/2 Inches
• Installation: Threaded
• Material: Die-Cast Copper Free Aluminum Body, Stainless Steel Screw
• Number of Hubs: 2
