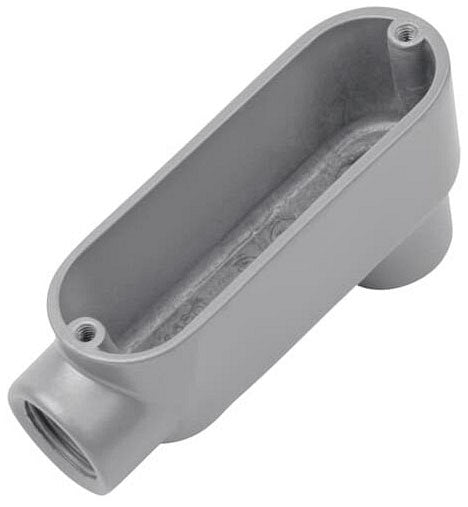

Red Dot ALB-5 Conduit Body 1-1/2 IN

Product Description

The Red Dot ALB-5 is a conduit body designed for use with one and a half inch rigid and IMC conduit. This unit enables junction for branch conduits and provides access for wire pulling and splicing. This product is built with die-cast aluminum for durability and weather resistance, ensuring a reliable electrical installation.

• Constructed from die-cast aluminum
• UL E28688 and CSA approved
• Features retained stainless steel cover screws

Product Highlights

This model is user-friendly, allowing easy wire management through its spacious wiring chamber.

Product Information

Standard Information

• Manufacturer: Red Dot
• UPC: 042269318304

Technical Specifications

• Access Opening: Back
• Configuration: LB
• Cover Type: Die-Cast Aluminum, Screw-On
• Hub Location: 90 Degrees
• Hub Size: 1-1/2 Inches
• Material: Die-Cast Copper Free Aluminum Body, Stainless Steel Screw
• Number Of Hubs: 2
• Size Reference: 7.25 IN x 3.81 IN
• Used On: Rigid/IMC Conduit
