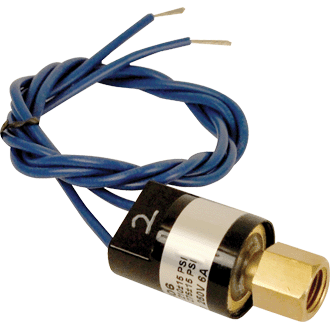

Rectoseal 43341 low pressure cut-out 5/20 close on rise

Product Description

The RECTORSEAL 43341 is a low pressure cut-out switch designed for safety and control in various systems. This pressure switch features a 'Close on Rise' action, opening at 5 psi and closing at 20 psi, making it suitable for applications requiring precise pressure monitoring. It includes an 18-inch lead length for flexible installation and a 1/4-inch Fe Flare SAE mount for secure connection.

• Operates with a 'Close on Rise' switch action, ensuring system safety by responding to pressure changes.
• Features an open pressure of 5 psi and a close pressure of 20 psi for specific system requirements.
• Equipped with an 18-inch lead length and a 1/4-inch Fe Flare SAE mount for versatile and secure installation.

Product Highlights

Low pressure cut-out switch with 5/20 psi operation and 1/4-inch Fe Flare SAE mount.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 43341

Technical Specifications

• Close PSI: 20 psi
• Lead Length: 18 inches
• Model: PS80-02-F1246
• Mount: 1/4 inch Fe Flare SAE
• Open PSI: 5 psi
• Series Brand: Klixon
• Switch Action: Close on Rise
• Type: Pressure
