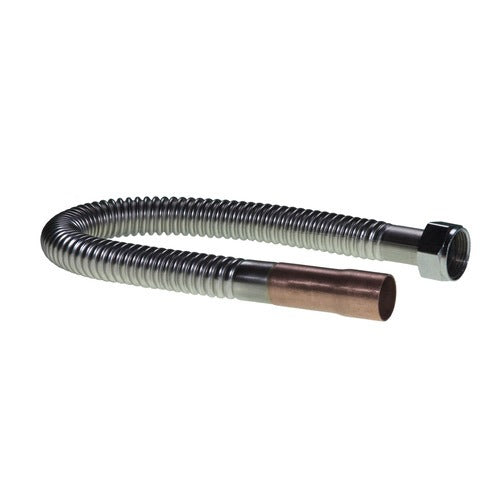

Rectorseal ZSSSWTF34-24 Ss Flex Water Heater Connector 24in

Product Description

The RECTORSEAL ZSSSWTF34-24 is a stainless steel flexible water heater connector designed to provide a durable, corrosion-resistant supply line connection for residential and light commercial water heater installations. It features a 0.75 inch inner diameter flexible stainless steel body measuring 24 inches in length, with a 0.75 inch female iron pipe (FIP) fitting on one end and a 7/8 inch outer diameter fitting on the other. Plumbers and water heater installers use this connector where a flexible, code-acceptable supply line is required between a water heater and the supply piping.

This connector is suited for residential water heater installations where a flexible stainless steel line is preferred over copper or corrugated materials. The 24 inch length provides enough reach to accommodate typical water heater rough-in distances and allows for minor misalignment between the unit and the supply line. It is appropriate for use on both cold and hot water inlet and outlet ports on standard tank-style water heaters.

Key Features

• Stainless steel construction for corrosion resistance and long service life
• 0.75 inch inner diameter flexible body for adequate flow capacity
• 24 inch length accommodates standard water heater rough-in clearances
• 0.75 inch FIP connection on one end for standard threaded pipe fitment
• 7/8 inch outer diameter fitting on opposite end for water heater port connection

Compatibility

Designed as an OEM-style replacement or new-installation flexible connector for residential tank-style water heaters requiring a 0.75 inch FIP inlet or outlet supply line connection.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and drain the line before removing any existing connector or making new connections. Hand-tighten fittings first, then use appropriate wrenches to snug connections without over-torquing the stainless fittings. Inspect for leaks at both ends after restoring water pressure.

Technical Specifications

• Material: Stainless Steel
• Inner Diameter: 0.75 inches
• Overall Length: 24 inches
• Inlet Connection: 0.75 inches FIP
• Outlet Outer Diameter: 7/8 inches

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: ZSSSWTF34-24
