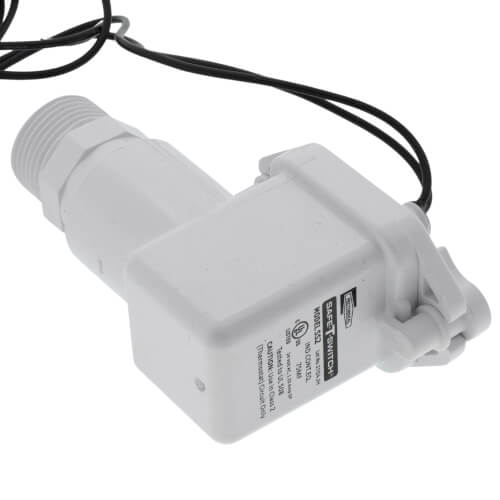

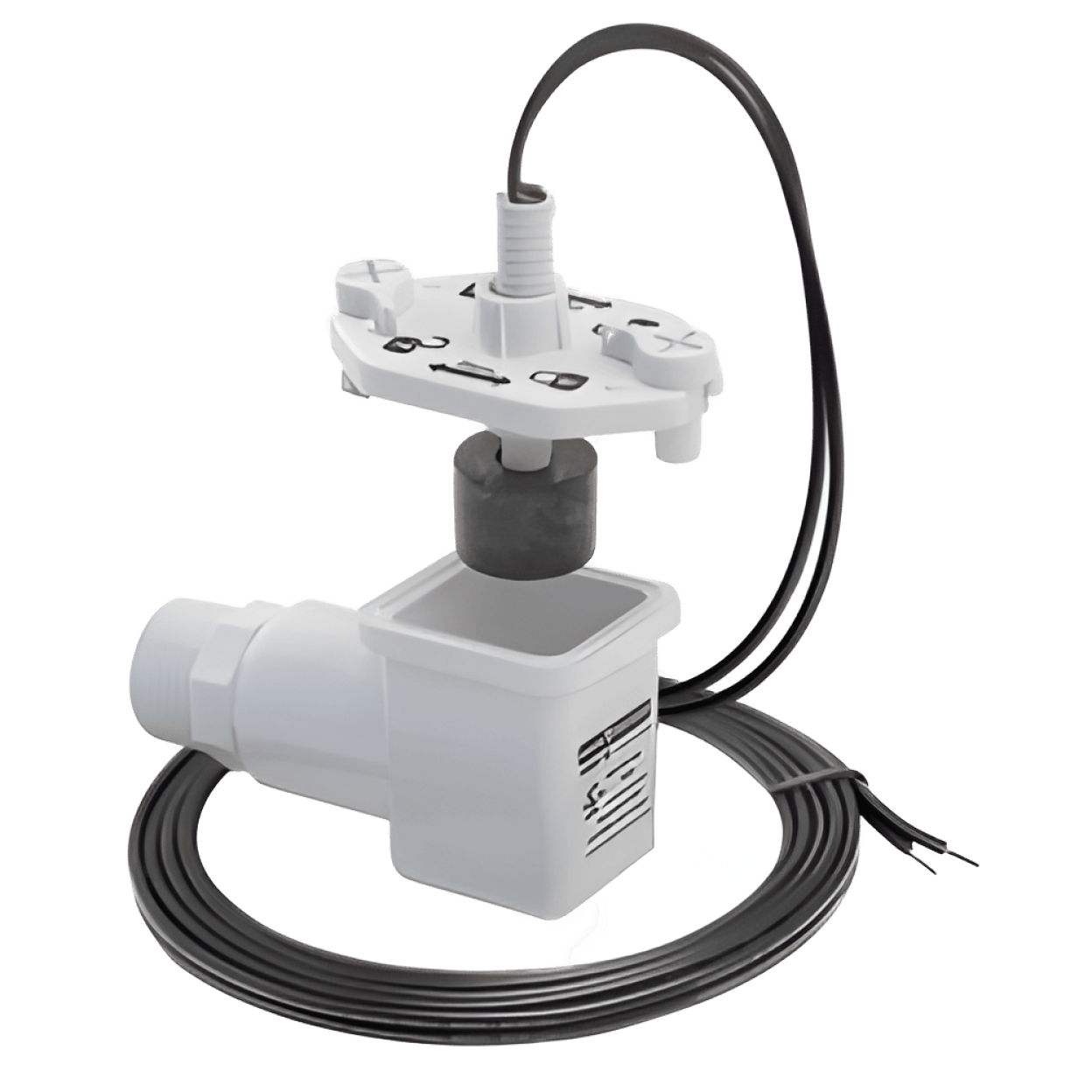

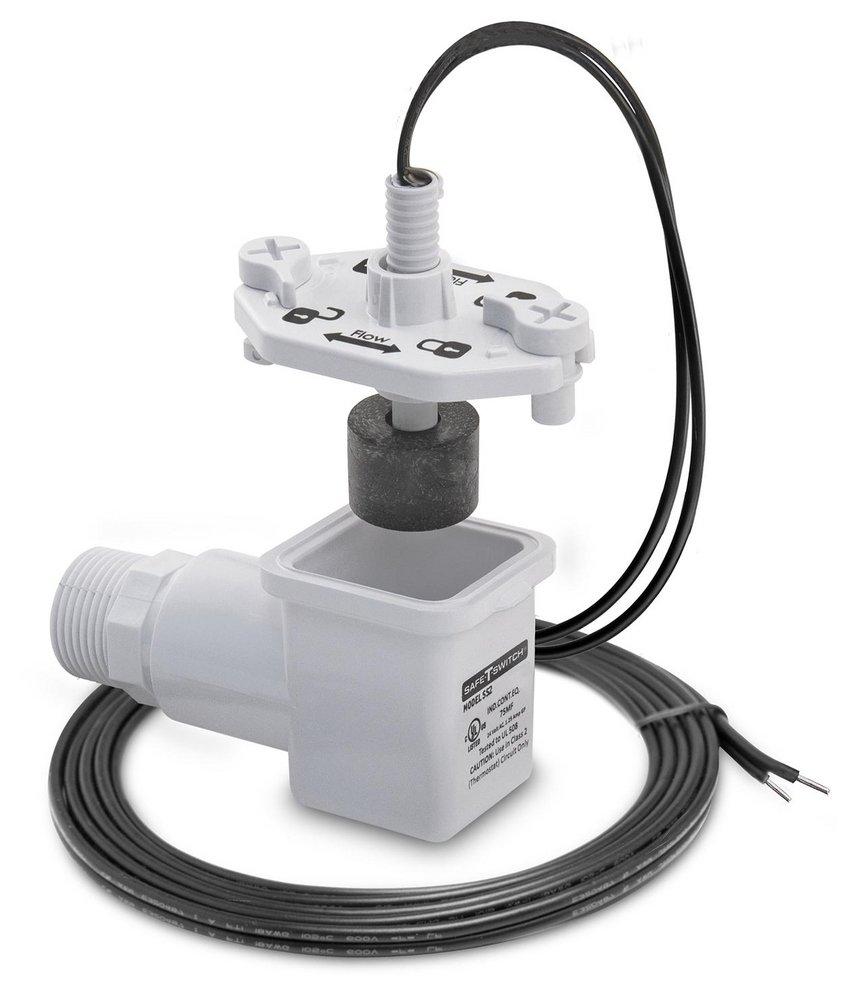

Rectorseal 97087 Safe-T-Switch SS2 Condensate Overflow Switch

Product Description

The Rectorseal 97087 Safe-T-Switch SS2 is a condensate overflow switch designed for HVAC systems. This switch helps detect clogged A/C condensate drains and shuts off the system to prevent water damage. It is made from durable plastic and can be installed on the auxiliary outlet of the primary drain pan using the included 3/4 inch adapter.

• Condensate overflow switch
• Adjustable ratcheting float level
• Magnetic reed switch

Product Highlights

This float switch is easy to install and service. The float sensitivity can be adjusted without removing the cap, and the cap is secure yet easy to remove and reinstall. The switch connects to either red or yellow wire.

Product Information

Standard Information

• Brand: Rectorseal
• Model Number: SS2
• Product Type: Shut-Off Switch
• For Use With: Primary Drain Pan Auxiliary Outlet

Technical Specifications

• Voltage Rating: 24VAC
• Ampere Rating: 1.25A
• Material: Plastic
• Length: 5.5 inches
• Width: 2 inches
• Height: 2.5 inches
• Cable Length: 6 ft
• Wire Size: 18 AWG
• Weight: 1 lb.
• Standards/Approvals: cULus Listed, UL Listed
• Includes: (1) Cap/Float Subassembly (including Stem/Wire, (2) Cam Locks, Cap, Float), (2) Elbow, (3) 3/4 inch Adapter, (4) Warning Sticker
