Product Description

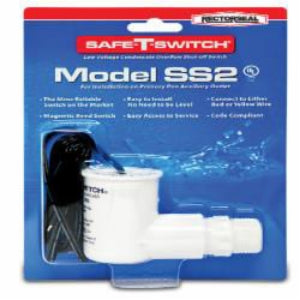

The RectorSeal SAFE-T-SWITCH Model SS2 is a 3/4 inch close coupled condensate drain pan overflow kit. This device detects blockages in condensate drains and interrupts the thermostat circuit, preventing flooding. It is compatible with the optional Safe-T-Gard Model SG1 condensate overflow alarm. The SS2 is typically installed on auxiliary drain pan outlets, which are often found on primary condensate drain pans.
- Suitable for tight spaces due to its compact design.
- PVC slip L body accommodates a three-quarter inch PVC pipe or stub adapter.
- Complies with International Mechanical Code requirements as an auxiliary drain substitute.
Product Highlights
This switch increases safety by preventing water damage from clogged condensate drains.
Product Information
Standard Information
-
Manufacturer: RectorSeal
-
Power Rating: 24 V
Technical Specifications
-
Series: SAFE-T-SWITCH
-
Inlet Size: 3/4 Inch
-
Float Material: Composite
-
Electrical Ratings: 1.25 A
-
Cord Size: 18 AWG, 72 Inch L
-
Material: Sch 40 PVC
-
Color: White
