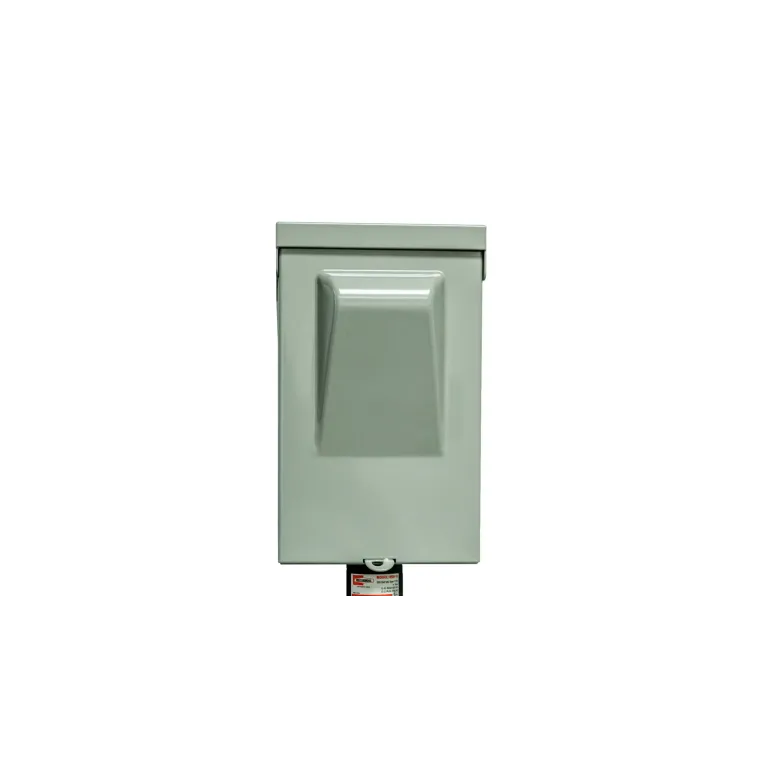

Rectorseal RECT-96419 RSH-50 with 60A Non-Fused Disconnect Box

Product Description

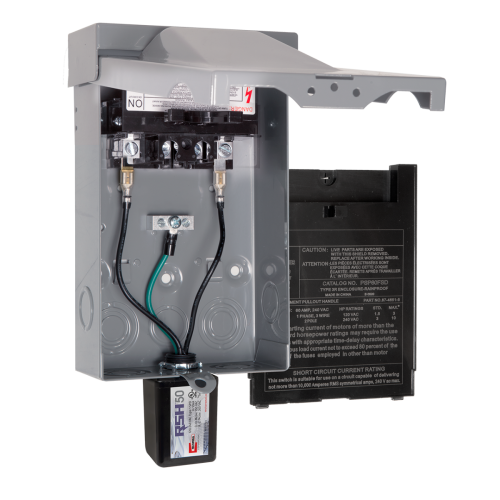

The Rectorseal RECT-96419 RSH-50 with 60A Non-Fused Disconnect Box includes a pre-installed RSH-50 surge protector tabbed into the disconnect. Designed to protect single-phase, 120/240-V air conditioning, heat pumps, and ductless mini-split systems from transient over-voltage and natural-cause surges. It avoids potential code violations with multiple wires being lugged in.

• Non Fused Disconnect Box
• Long-Lasting Gas Discharge Tube Technology
• TFMOV Technology
• Green LED Easily Indicates Protection

Product Highlights

Provides surge protection for HVAC systems, preventing damage from power surges and over-voltages. Ensures code compliance and easy monitoring with a green LED indicator.

Product Information

Standard Information

• Brand: Rectorseal
• Manufacturer Part Number: RECT-96419
• Country of Origin: CHN

Technical Specifications

• SKU: 96419
• Categories: Surge Protection, Unit Protection
• Brand: RectorSeal
• UPC: 021449964197
• Application: Surge Protection
• Amps: 50,000
• Cycle/Hertz: 50/60 Hz
• Fusible: true
• Maximum Voltage: 240 VAC
• Phase: Single
• Poles: Double
• Prop 65: false
• Switch Type: Non-Fused
• Voltage: 120/240V, Single Phase
• Country of Origin: CHN
• Approvals: CUL Listed; UL Listed; UL Recognized
• Frequency: 60 Hz
• Maximum Load: 60 Amps
• Surge Protection: Up to 50,000 Amps
• Type: Surge Protection Device Type 1
• Enclosure Rating: NEMA 4 (Outdoor Use)
• Height: 2.75
• Length: 10.5
• Width: 5.375
• Harmonize Code: 8536.50.0000
