Rectorseal 87022 3/4 x 3/4 Push-To-Connect x Push-To-Connect 870 PSI

Product Description

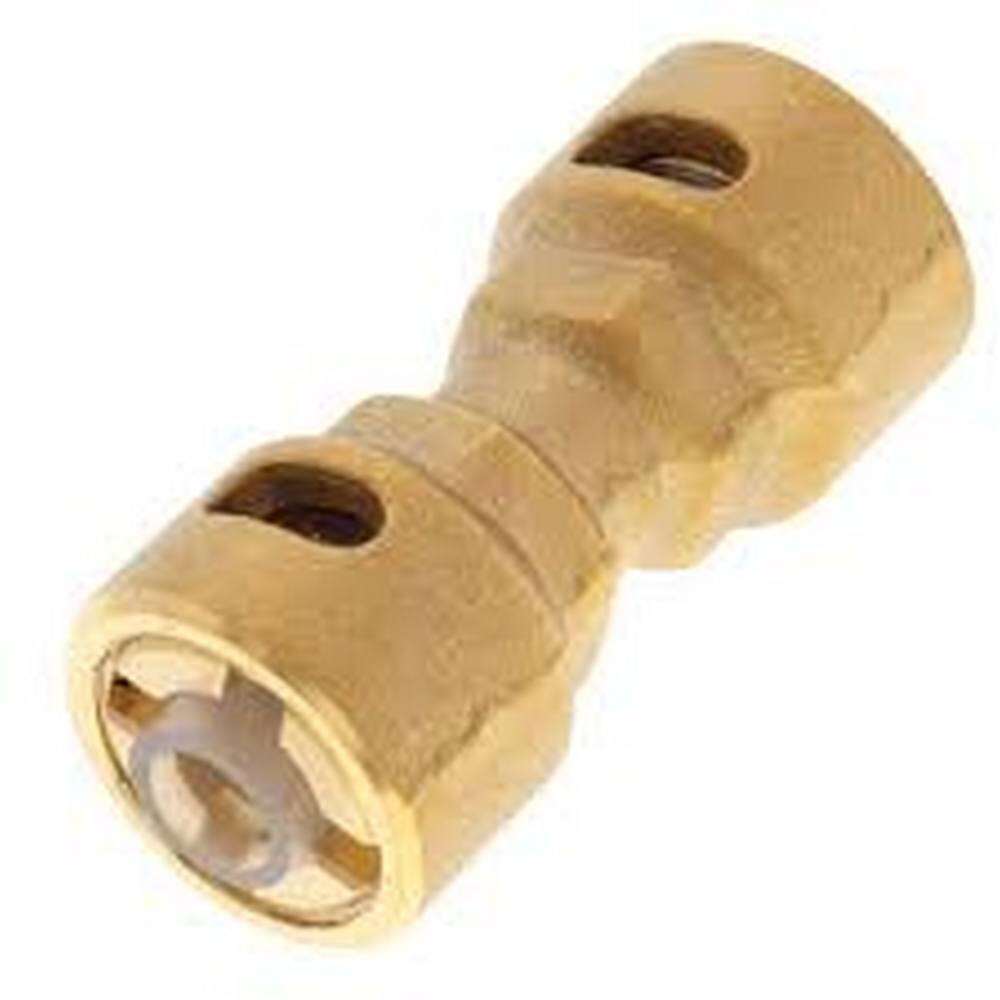

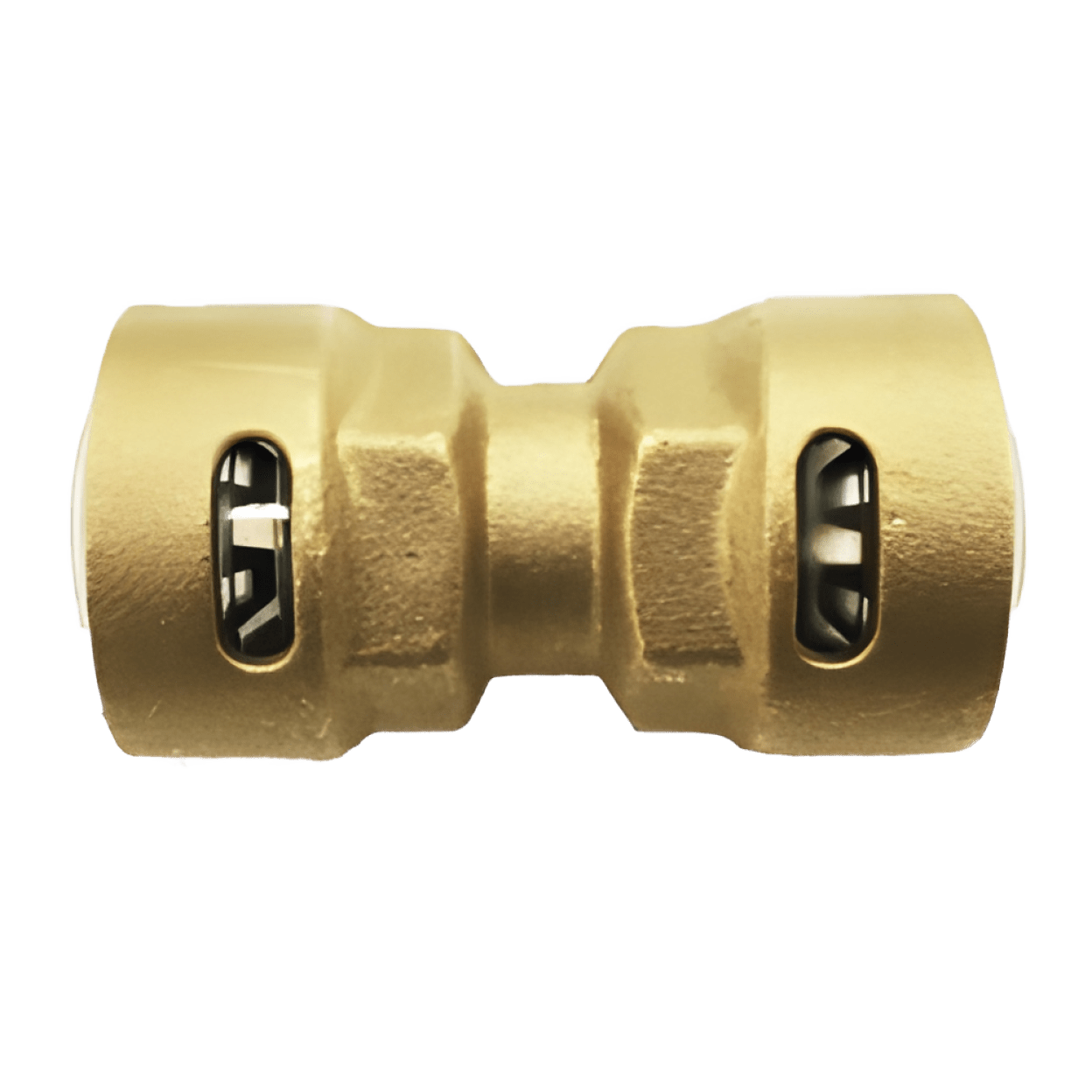

The RectorSeal 87022 is a straight refrigerant line union fitting designed for connecting copper and aluminum lines. It has a size of three-quarters by three-quarters, with push-to-connect ends, and supports a pressure rating of eight hundred seventy PSI. This union is suitable for residential and commercial HVAC systems, specifically mini-split units and indoor coils.

• Three-quarters inch size on both sides
• Push-to-connect design for easy installation
• Constructed from durable brass material

Product Highlights

RectorSeal fittings provide a fast and reliable connection for refrigerant lines without the need for an open flame.

Product Information

Standard Information

• Brand: RectorSeal
• MPN: 87022

Technical Specifications

• Type: Straight
• Size A: 3/4 Inch
• Size B: 3/4 Inch
• End Connection: Push-To-Connect x Push-To-Connect
• Material: Brass
• Pressure Rating: 870 PSI
• Application: Residential, Copper and Aluminum Lineset, Mini-Split HVAC Unit, Unitary Indoor Coil, Refrigerant Line
• Applicable Standard: UL (Canada and US)
