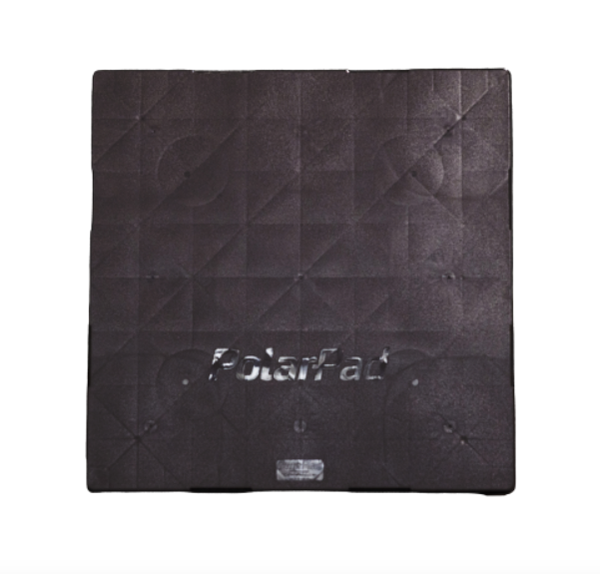

Rectorseal polar3636-3gy Polar Pad 36x36x3 Equipment Pad

Product Description

The RECTORSEAL polar3636-3gy is an injection-molded HDPE equipment support pad designed to provide a stable, level base for residential and light commercial HVAC condensing units, heat pumps, and similar outdoor mechanical equipment. Measuring 36 inches x 36 inches x 3 inches and weighing 16.1 pounds, this pad resists cracking, warping, UV exposure, oils, and refrigerants. Its self-leveling design and reinforced underside ribbing maintain load stability over time without settling or shifting. The lightweight construction allows single-person placement without additional lifting equipment.

This pad is suited for new construction and replacement installations where a concrete-free equipment support solution is preferred. It is commonly placed beneath outdoor condensing units, heat pump systems, and mini-split compressor units on grade-level installations. The textured, concrete-like top surface and rounded edges give finished installations a clean, professional appearance. The size is stamped directly into the pad for quick field identification on multi-unit jobsites.

Key Features

• Injection-molded HDPE construction resists cracking, warping, UV, oils, and refrigerants
• Reinforced underside ribbing and self-leveling design maintain stability under load
• Lightweight at 16.1 pounds for one-person placement without extra equipment
• Textured, concrete-like top surface with rounded edges for a finished appearance
• Size stamped into pad for fast field identification
• Available in black or gray finishes

Compatibility

Designed as an OEM-style replacement or new-installation support pad for outdoor HVAC condensing units, heat pumps, and similar mechanical equipment requiring a 36 inches x 36 inches footprint base.

Installation Notes

Installed by HVAC technicians or general contractors during outdoor unit placement. De-energize and recover refrigerant per EPA Section 608 requirements before moving any connected equipment. Ensure the ground surface is adequately compacted and graded before setting the pad to maximize the self-leveling benefit. Verify local mechanical codes for required equipment clearances and pad placement requirements.

Technical Specifications

• Length: 36 inches
• Width: 36 inches
• Thickness: 3 inches
• Weight: 16.1 pounds
• Material: Injection-molded HDPE

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: polar3636-3gy
