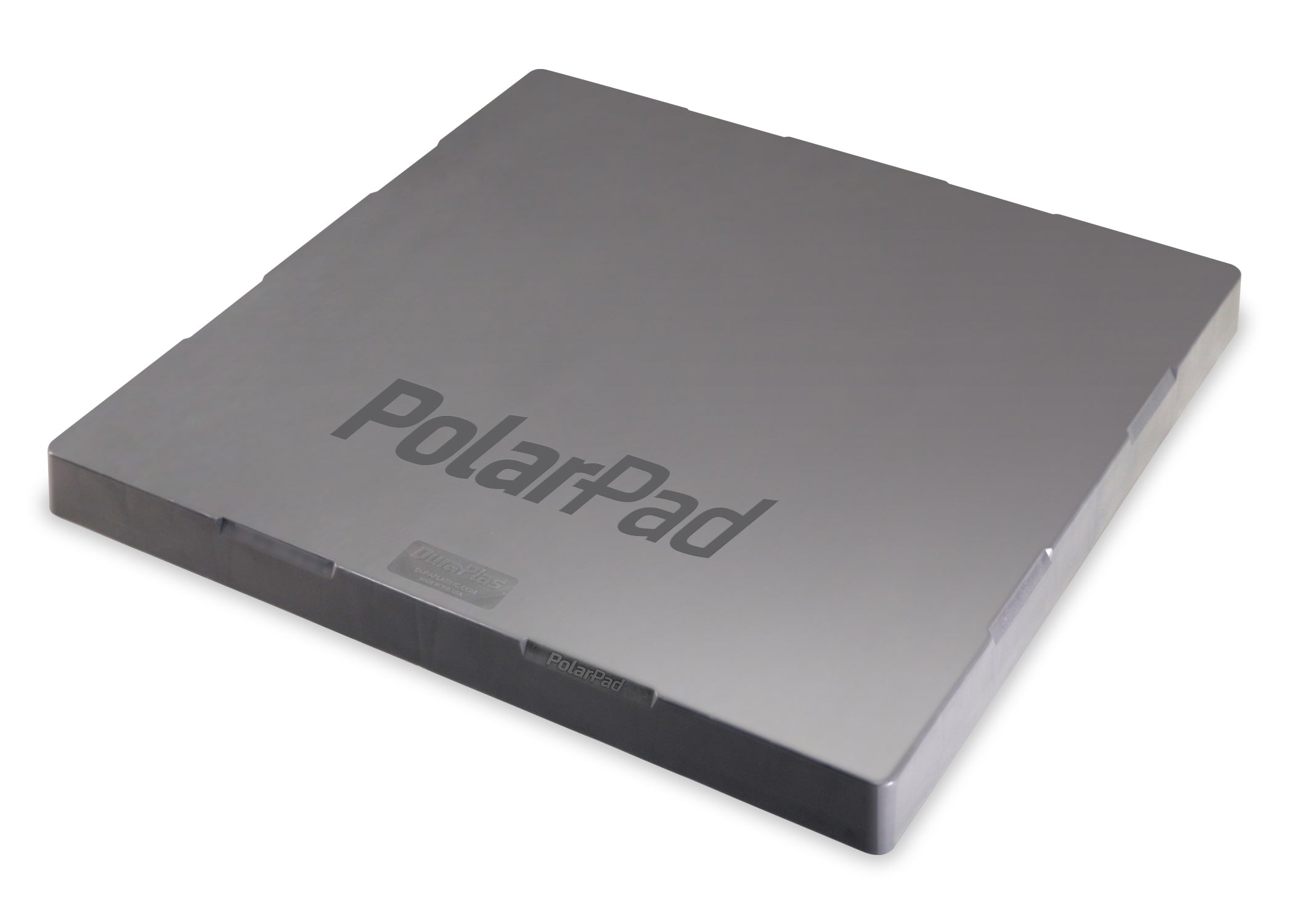

Rectorseal MPOLAR3030-3 Condenser Pad 30x30x3

Product Description

The RECTORSEAL MPOLAR3030-3 is a gray polymer condenser pad designed to provide a stable, level mounting surface for residential and light commercial air conditioning condensing units. Measuring 30 inches by 30 inches with a 3-inch height, this pad elevates the condenser off the ground to promote drainage, reduce vibration transfer, and protect the unit base from moisture and soil contact. HVAC technicians and installers use this pad as a code-compliant alternative to poured concrete during new installations and equipment replacements.

This condenser pad is suited for ground-level condensing unit installations in residential and light commercial applications. It is commonly used when a fast, clean install is preferred over forming and pouring concrete. The 30 x 30 inch footprint accommodates a wide range of standard residential condenser unit bases, and the 3-inch elevation helps keep the unit clear of standing water and lawn debris.

Key Features

• 30 x 30 inch footprint accommodates standard residential condensing unit bases
• 3-inch height elevates the unit above grade for drainage and moisture protection
• Gray finish blends with typical residential exterior installations
• Polymer construction resists rot, insects, and soil degradation over time
• No mixing or curing required compared to poured concrete pads

Compatibility

Designed as an OEM-style replacement or new-installation pad for standard residential and light commercial air conditioning condensing units requiring a 30 x 30 inch mounting surface.

Installation Notes

Installation is typically performed by a licensed HVAC technician as part of a new condenser installation or equipment changeout. The ground surface should be excavated, leveled, and compacted before placing the pad to ensure a stable, plumb foundation. Verify local mechanical codes for required pad height and setback requirements before installation. Always disconnect and lock out electrical power to the condensing unit before performing any service work on the system.

Technical Specifications

• Length: 30 inches
• Width: 30 inches
• Height: 3 inches
• Package Length: 16.88 inches
• Color: Gray

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: MPOLAR3030-3
