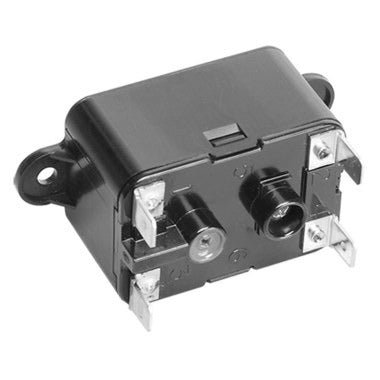

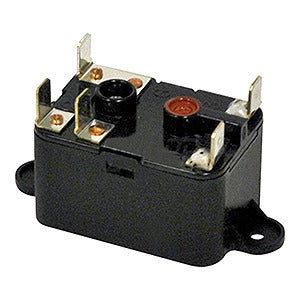

Rectorseal M90292 Relay/Socket 208/240V (SPST) PR292

Product Description

Rectorseal M90292 is a general-purpose single pole single throw (SPST) relay with a 208/240 V coil designed for panel and HVAC applications. The relay is totally enclosed, uses screw-on terminal connections, and has an 8 A contact rating for switching fan motors, solenoids, relays, and resistive loads. The unit is UL listed and CSA certified and is offered as a replacement for PR292 models.

• Coil voltage: 208/240 V; contact rating: 8 A; SPST (normally open) switching
• Totally enclosed construction with screw-on terminals (push-on for Q suffix); overall dimensions 2.375 x 1.625 x 1.5 inches
• Approvals: UL listed and CSA certified; applications include air conditioning, fan motors, solenoids and resistive loads

Product Highlights

General-purpose SPST relay, 208/240 V coil, 8 A contact rating, UL and CSA approvals, replacement for PR292

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M90292
