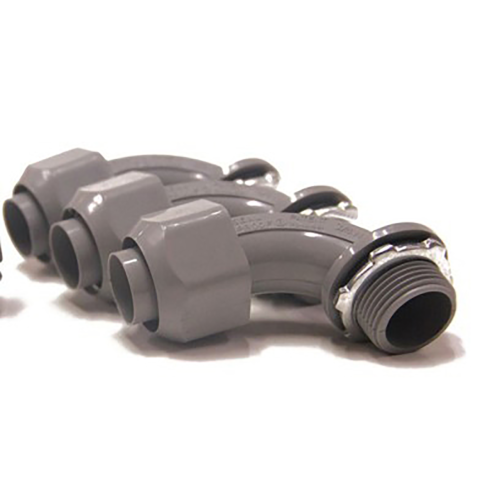

Rectorseal M84995 Liquid-tight Conduit Fitting 3/4 in 90 Deg

Product Description

The RECTORSEAL M84995 is a 3/4 inch, 90-degree sweep liquid-tight conduit fitting designed to seal liquidtight conduit connections and protect enclosed wiring from moisture, dust, and debris. The screw-on design provides a secure threaded connection for long-term mechanical and environmental reliability. Weighing just 0.09 pounds, this compact fitting measures approximately 0.51 inches deep, 0.52 inches tall, and 0.41 inches wide, making it well suited for tight routing in conduit runs. Electricians use this fitting where conduit must change direction at 90 degrees while maintaining a sealed, protected pathway for conductors in wet or contaminated environments.

This fitting is appropriate for use in residential and light commercial electrical installations where liquidtight flexible conduit must be terminated or routed through a 90-degree change in direction. Typical applications include equipment connections in mechanical rooms, rooftop HVAC units, pumping stations, and other locations subject to moisture exposure. The 90-degree sweep profile allows clean directional transitions without excessive bending stress on enclosed conductors or the conduit jacket.

Key Features

• 90-degree sweep profile for directional conduit routing without excessive conductor bend radius
• Screw-on threaded connection for a secure, long-term seal
• Seals against moisture, dust, and debris intrusion
• Compact form factor: 0.51 x 0.52 x 0.41 inches
• Lightweight at 0.09 pounds per fitting
• Available in metallic and nonmetallic body options across the product line

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with 3/4 inch liquidtight flexible conduit systems. The broader product line covers conduit sizes from 3/8 inch to 1 inch.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits before working on conduit and wiring systems. Hand-tighten the screw-on fitting onto the conduit, then secure with pliers or an appropriate conduit wrench to achieve a firm, leak-resistant connection without over-torquing the threads. Verify that the conduit jacket is fully seated and that the fitting provides a complete seal before restoring power.

Technical Specifications

• Conduit Size: 3/4 inch
• Fitting Angle: 90 degrees sweep
• Connection Type: Screw-on threaded
• Item Depth: 0.51 inches
• Item Height: 0.52 inches
• Item Width: 0.41 inches
• Item Weight: 0.09 pounds
• Case Quantity: 10 per case
• Case Weight: 10.1 pounds

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M84995
