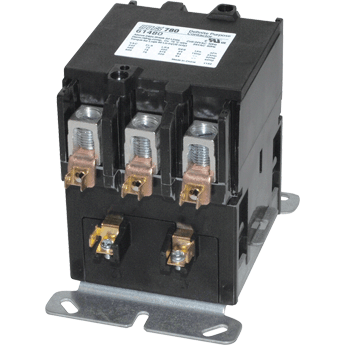

Rectorseal M61492 Definite Purpose Contactor 90A 3P 240V

Product Description

The RECTORSEAL M61492 is a three-pole, definite purpose contactor rated for 90 amps full load (FLA) and 120 amps resistive, operating on a 240-volt coil. Definite purpose contactors are designed for specific load types and duty cycles, making them a standard component in HVAC and refrigeration control panels. This contactor carries a Class 42 rating, which classifies it for definite purpose applications such as air conditioning compressors, condensing units, and commercial refrigeration equipment. Licensed HVAC technicians and electricians perform this type of replacement as part of routine equipment servicing or emergency repair.

This contactor is suited for residential and light commercial HVAC systems where a three-pole switching device is required in the load circuit. It is a direct replacement for failed or degraded contactors in condensing units, packaged rooftop equipment, and similar definite purpose motor control applications. The M61492 is also cataloged under the MARS series and may be referenced as part number 62492 in some supplier systems.

Key Features

• Three-pole configuration for three-phase or multi-leg load control
• 90-amp full load amperage (FLA) rating for compressor and motor loads
• 120-amp resistive load rating for broader switching capability
• 240-volt coil voltage compatible with standard HVAC control circuits
• Class 42 definite purpose design suited for HVAC and refrigeration duty
• Direct replacement for Furnas 42GE35AG106

Compatibility

Replaces Furnas part number 42GE35AG106. Also referenced as MARS series part 62492. Designed as a definite purpose replacement contactor for three-pole, 240-volt HVAC and refrigeration control applications.

Installation Notes

Installation should be performed by a licensed HVAC technician or electrician. Always disconnect and lock out all power to the unit before removing or installing a contactor. Verify coil voltage and pole configuration match the existing equipment wiring diagram before energizing. Work should comply with applicable NEC requirements and local electrical codes.

Technical Specifications

• Poles: 3-Pole
• Coil Voltage: 240 volts
• Full Load Amperage (FLA): 90 amps
• Resistive Load Rating: 120 amps
• Class: Class 42
• Type: Definite Purpose
• Series: MARS

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M61492
