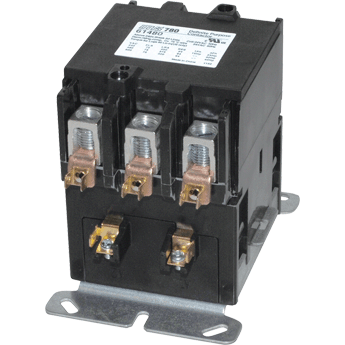

Rectorseal M61491 Three Pole Contactor 90A 120V

Product Description

The RECTORSEAL M61491 is a three-pole electrical contactor rated for 90 amps full load amperage (FLA) and 120 amps resistive load, with a 120-volt coil. Contactors of this type switch high-current motor and resistive loads on command from a low-voltage control circuit. The M61491 uses box lug terminations for secure conductor connections and meets Class 42 contactor specifications. Licensed electricians and HVAC technicians install this type of device in motor control panels, packaged rooftop units, condensing units, and other commercial or industrial load-switching applications.

This contactor is suited for three-phase or single-phase load control in commercial HVAC equipment, refrigeration systems, and motor control centers where a 90A FLA-rated, three-pole switching device is required. Box lug terminals accommodate solid or stranded conductors and simplify field wiring in panel and equipment enclosures. The unit is cataloged as a replacement or direct substitute aligned with Class 42 device specifications, cross-referencing prior part number 62491.

Key Features

• Three-pole configuration for multi-phase or multi-leg load switching
• 90A full load amperage (FLA) and 120A resistive load rating
• 120-volt coil for compatibility with standard control circuit voltages
• Box lug terminals for reliable, tool-secured conductor termination
• Class 42 contactor classification for motor and resistive load duty
• Replaces prior part number 62491

Compatibility

Designed as a Class 42-rated three-pole contactor replacement; cross-references part number 62491 and is noted as a MARS 780 series device. No additional specific equipment model compatibility was provided in the product data.

Installation Notes

Installation must be performed by a licensed electrician or qualified HVAC technician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the equipment at the disconnect before removing or installing the contactor. Verify coil voltage, pole count, and amperage ratings match the application before wiring. Torque all box lug terminals to the value specified on the contactor or in the equipment wiring diagram.

Technical Specifications

• Pole Count: 3
• Full Load Amperage (FLA): 90 amps
• Resistive Load Rating: 120 amps
• Coil Voltage: 120 volts
• Terminal Type: Box Lug
• Contactor Class: Class 42
• UPC: 0685744614913

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M61491
