Rectorseal M61472 Definite Purpose Contactor 60A 3-pole 208 240V

Product Description

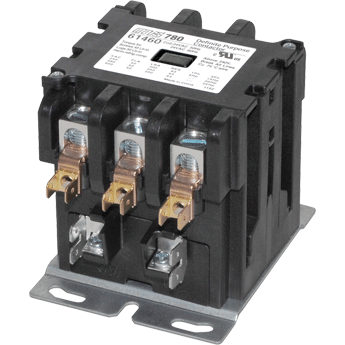

The RECTORSEAL M61472 is a three-pole definite purpose contactor rated for 60 amps inductive (FLA) and 75 amps resistive, with a 208/240-volt coil. Definite purpose contactors are switching devices designed for specific load types such as HVAC compressors, condensing units, and resistance heating equipment. This Class 42 contactor provides reliable load-side switching in high-cycle applications where a standard motor starter is not required. Installation is performed by licensed electricians or HVAC technicians working on commercial and residential refrigeration and air conditioning equipment.

This contactor is suited for use in single-phase and three-phase condensing units, rooftop units, and packaged HVAC systems where a 208/240-volt control circuit switches a three-pole load. It replaces the Furnas 42EF35AG and is part of the MARS series of definite purpose contactors. This unit is noted as obsolete and superseded by part number 62472; sell to depletion guidance applies. Verify the replacement part number 62472 for ongoing procurement needs.

Key Features

• Three-pole configuration for three-phase or multi-leg single-phase load switching
• 60-amp inductive (FLA) rating handles compressor and motor loads
• 75-amp resistive rating supports electric heat and resistive load applications
• 208/240-volt coil compatible with standard HVAC control circuits
• Direct replacement for Furnas 42EF35AG
• Class 42 definite purpose design for HVAC and refrigeration duty cycles

Compatibility

Direct replacement for the Furnas 42EF35AG contactor. Superseded by RECTORSEAL part number 62472. Designed for definite purpose Class 42 applications in HVAC condensing units and packaged equipment using a 208/240-volt control coil.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician in accordance with NEC requirements. De-energize and lock out the disconnect before removing or installing the contactor. Verify that coil voltage, pole count, and amperage ratings match the existing equipment specifications before installing. Do not exceed the rated inductive or resistive amperage for the application.

Technical Specifications

• Poles: 3
• Inductive Amps (FLA): 60 amps
• Resistive Amps: 75 amps
• Coil Voltage: 208/240 volts
• Type: Definite Purpose
• Class: 42
• Series: MARS
• Replaces: Furnas 42EF35AG
• Superseded By: 62472

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M61472
