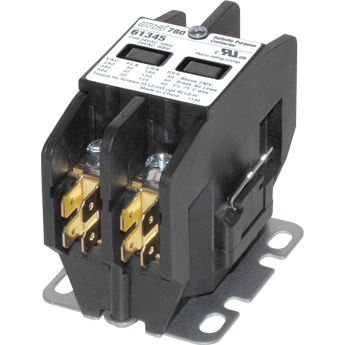

Rectorseal M61346 Definite Purpose Contactor 30A 2 Pole 120V

Product Description

The RECTORSEAL M61346 is a definite purpose contactor designed for use in HVAC and refrigeration control circuits. It features a 120-volt coil, a 2-pole configuration, and a 30-amp full load amperage (FLA) rating with a 40-amp resistive rating. Definite purpose contactors like this one are engineered for specific switching applications in motor-load circuits, where reliable coil-energized contact closure is critical to system operation. This unit is a direct replacement for the Furnas 45E(C/D)G20AF and is distributed under the MARS series brand. Licensed HVAC technicians and electricians are the primary installers of this type of component.

This contactor is suited for residential and light commercial HVAC applications including air conditioning condensing units, heat pumps, and refrigeration equipment where a 120-volt control signal is used to switch compressor or fan motor loads. The 2-pole design allows simultaneous switching of both legs of a load circuit. Its 30 MFD inductive amp rating and 40-amp resistive capacity make it appropriate for single-phase motor loads commonly found in split-system air conditioners and package units.

Key Features

• 120-volt coil voltage for compatibility with standard low-voltage HVAC control circuits
• 2-pole configuration switches both circuit legs simultaneously
• 30-amp FLA rating handles typical residential compressor and condenser fan loads
• 40-amp resistive rating provides additional capacity for non-inductive switching
• Definite purpose design engineered for HVAC and refrigeration motor control applications
• Direct replacement for Furnas 45E(C/D)G20AF contactors

Compatibility

Replaces Furnas 45E(C/D)G20AF contactors. Designed as an OEM-style definite purpose replacement for residential and light commercial HVAC condensing unit and refrigeration control circuits requiring a 120-volt, 2-pole, 30-amp contactor.

Installation Notes

Installation should be performed by a licensed HVAC technician or electrician. Disconnect and lock out all power to the unit before removing the existing contactor or making any wiring connections. Verify coil voltage and pole configuration match system requirements before installation. Follow all applicable NEC guidelines for motor control circuit wiring and overcurrent protection.

Technical Specifications

• Type: Definite Purpose
• Poles: 2
• Coil Voltage: 120 volts
• Inductive Amps (FLA): 30 amps
• Resistive Amps: 40 amps
• Series: MARS
• Replaces: Furnas 45E(C/D)G20AF

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M61346
