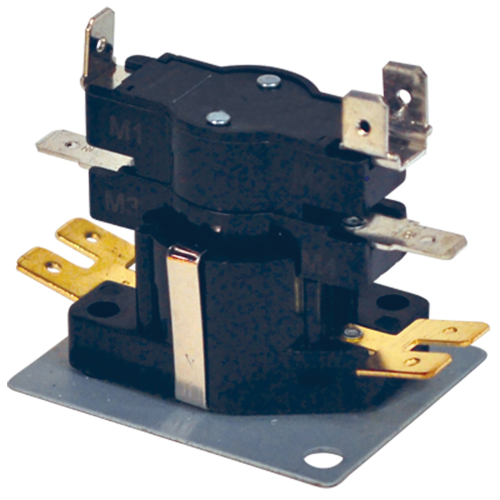

Rectorseal M33244 Time Delay Relay Dpst

Product Description

The RECTORSEAL M33244 is a double-pole single-throw (DPST) time delay relay (TDR) designed for use in plumbing and mechanical control applications. Time delay relays provide timed switching control, allowing a circuit to open or close after a preset interval has elapsed. This type of component is commonly installed by licensed plumbers and mechanical contractors in automated control panels, pump systems, and related plumbing equipment where sequenced or delayed switching is required. The M33244 serves as a control component within a larger system assembly.

The M33244 is suited for residential and light commercial plumbing control applications. It is typically installed within an equipment control panel or enclosure as part of a pump, recirculation, or fluid-management system. This relay is intended for use by trained trade professionals familiar with low-voltage and line-voltage control wiring practices.

Key Features

• DPST switching configuration for simultaneous two-circuit control
• Time delay relay function enables sequenced or delayed circuit switching
• Designed for integration into plumbing and mechanical control assemblies
• Compact form factor suited for panel or enclosure mounting

Compatibility

Designed as an OEM-style replacement or service component for plumbing control panels and mechanical systems requiring a DPST time delay relay.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical contractor. De-energize and lock out the control panel before removing or installing this relay. Follow applicable NEC requirements for control wiring within the enclosure. Do not exceed the relay's rated electrical capacity for the connected load.

Technical Specifications

• Switch Configuration: DPST (Double-Pole Single-Throw)
• Component Type: Time Delay Relay (TDR)
• Product Category: Plumbing
• UPC: 685744332442

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M33244
