Rectorseal M24010 Fan Control 3/4 HP (Fan Control Center)

Product Description

Rectorseal M24010 is a fan control center incorporating a DPDT switching relay and a 40 VA control transformer for low-voltage control in HVAC/R applications. The unit accepts 120/208/240 VAC primary power and provides 24 VAC secondary at 50/60 Hz. It supports motor ratings up to 13.8 FLA / 82.8 LRA at 120 VAC and includes color-coded, pre-stripped leads and a terminal board for low-voltage connections.

• DPDT plug-in switching relay combined with 40 VA 24 VAC transformer for low-voltage fan control
• Primary voltage: 120/208/240 VAC; secondary: 24 VAC, 50/60 Hz; motor ratings: 13.8 FLA / 82.8 LRA (120 VAC), 6.9 FLA / 41.4 LRA (240 VAC)

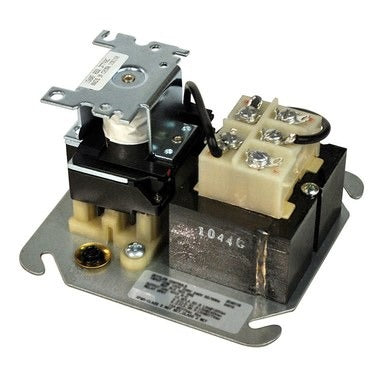

• Relay and transformer mounted on a 4 in square electrical junction box cover with color-coded pre-stripped leads and terminal board for low-voltage connections

Product Highlights

DPDT fan control center with 40 VA transformer, 24 VAC secondary, color-coded leads, and UL 1585 compliance

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M24010
• Country of Origin: United States
