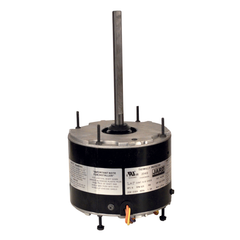

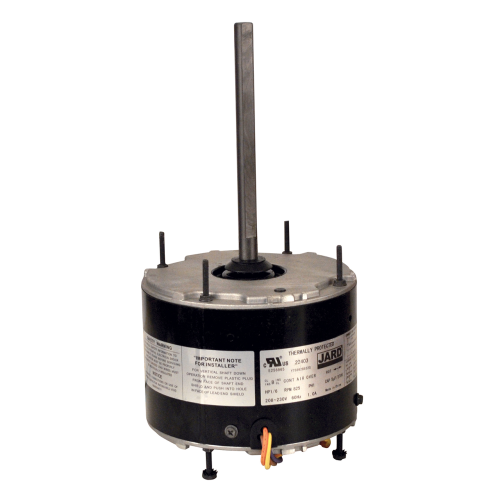

Rectorseal M22729 Condenser Fan Motor 1/3 Hp 208-230V

Product Description

The RECTORSEAL M22729 is a condenser fan motor rated at 1/3 horsepower, 208-230 volts, and 1075 RPM. It is designed for use in the outdoor condensing unit of residential or light commercial air conditioning and heat pump systems. This motor drives the condenser fan blade, moving air across the coil to reject heat from the refrigerant circuit. Licensed HVAC technicians install this motor as a direct replacement when the original condenser fan motor fails due to bearing wear, winding failure, or thermal overload.

The M22729 is suited for outdoor condensing unit applications where a 1/3 HP, 208-230 volt, single-phase motor operating at 1075 RPM is specified. It fits typical residential split-system air conditioners and heat pumps that require a replacement condenser fan motor matching these electrical and mechanical ratings. Always verify shaft diameter, rotation direction, shaft length, and mounting configuration before installation.

Key Features

• 1/3 HP output for standard residential condenser fan duty
• 208-230 volt rating accommodates common single-phase supply voltages
• 1075 RPM operating speed matches typical OEM condenser fan motor specifications
• Designed as a replacement unit for failed or degraded condenser fan motors
• Suitable for outdoor condensing unit environments

Compatibility

Designed as an OEM-style replacement condenser fan motor for residential and light commercial split-system air conditioning and heat pump condensing units requiring a 1/3 HP, 208-230 volt, 1075 RPM single-phase motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the condensing unit before beginning work. Verify that the replacement motor shaft diameter, rotation direction, shaft length, and mounting dimensions match the original unit before completing the installation. Follow all applicable local electrical codes and manufacturer wiring diagrams when reconnecting motor leads.

Technical Specifications

• Horsepower: 1/3 HP
• Voltage: 208-230 volts
• Speed: 1075 RPM
• Motor Type: Condenser Fan Motor

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M22729
