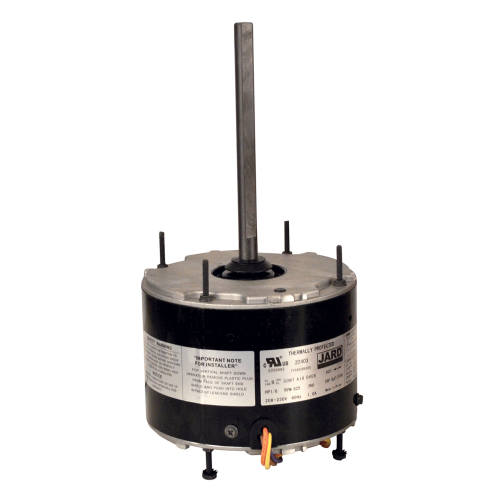

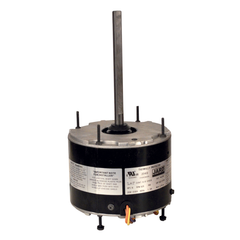

Rectorseal M22728 Condenser Fan Motor 1/4 Hp 208-230V

Product Description

The RECTORSEAL M22728 is a condenser fan motor rated at 1/4 horsepower, 208-230 volts, and 1075 RPM. It is designed to drive the condenser section fan blade in air-cooled HVAC equipment, maintaining airflow across the condenser coil for heat rejection. This motor is a direct-drive unit intended for outdoor condensing units in residential and light commercial cooling systems. Licensed HVAC technicians install and replace this type of motor as part of routine condenser maintenance or following motor failure diagnosis.

This motor is suited for use in outdoor condensing units that require a 1/4 HP, single-phase motor operating on 208-230 volt supply voltage at 1075 RPM. It is a common replacement motor for residential split-system air conditioners and heat pumps where the original condenser fan motor has failed or degraded. The 1075 RPM speed is standard for condenser fan applications requiring moderate airflow with low noise output.

Key Features

• 1/4 HP output for standard residential condenser fan applications
• 208-230 volt dual-voltage rating accommodates common single-phase supply voltages
• 1075 RPM operating speed suited for condenser section airflow requirements
• Designed for outdoor condensing unit installation

Compatibility

Designed as an OEM-style replacement condenser fan motor for residential and light commercial air-cooled condensing units requiring a 1/4 HP, 208-230 volt, 1075 RPM single-phase motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the condensing unit before removing the existing motor or handling any wiring. Verify the replacement motor shaft diameter, rotation direction, and mounting configuration match the original unit requirements before installation. Follow all applicable local electrical codes and manufacturer wiring diagrams when reconnecting motor leads.

Technical Specifications

• Horsepower: 1/4 HP
• Voltage: 208-230 volts
• Speed: 1075 RPM
• Application: Condenser Fan Motor

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M22728
