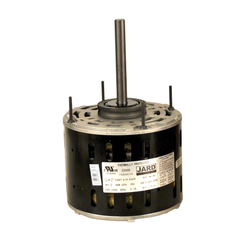

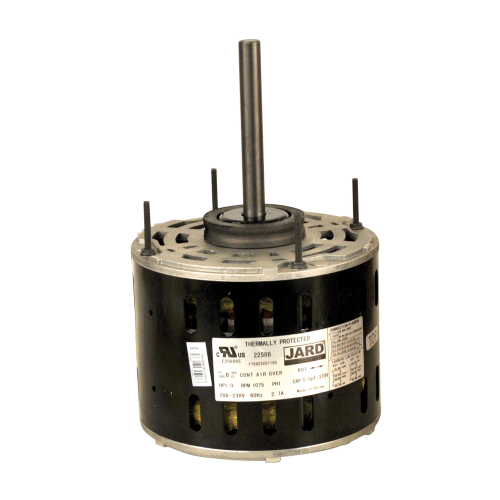

Rectorseal M22586 Condenser Fan Motor 1/3 Hp 208/230V

Product Description

The RECTORSEAL M22586 is a multi-speed condenser fan motor rated at 1/3 horsepower and designed for 208/230 volt single-phase applications. Operating at 1075 RPM with three selectable speeds and reversible rotation, this motor is built for replacement and service work in residential and light commercial HVAC equipment. Licensed HVAC technicians use this motor when restoring proper airflow across condenser coils in split-system air conditioners and heat pumps. The reversible rotation feature allows the installer to match the original airflow direction without sourcing a direction-specific part, reducing truck stock requirements and simplifying field service.

This motor is a direct-drive condenser fan motor suited for outdoor condensing unit applications. It fits into typical service scenarios where an OEM motor has failed and a replacement is needed to restore unit efficiency and proper refrigerant heat rejection. The 208/230 volt rating covers both common commercial and residential supply voltages found in North American HVAC systems, making it adaptable across a range of job sites. The three-speed configuration gives technicians flexibility when matching original motor wiring and control sequences.

Key Features

• 1/3 HP output suitable for standard residential and light commercial condenser fan assemblies
• 208/230 volt dual-voltage rating covers common North American single-phase supply voltages
• 1075 RPM operating speed matches typical OEM condenser fan motor specifications
• Three selectable speeds allow matching of original motor wiring and control sequences
• Reversible rotation eliminates the need for direction-specific motor sourcing in the field

Compatibility

Designed as an OEM-style replacement condenser fan motor for residential and light commercial split-system air conditioners and heat pumps requiring a 1/3 HP, 208/230 volt, 1075 RPM, 3-speed reversible motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the condensing unit before removing the existing motor or handling wiring. Confirm shaft diameter, shaft length, mounting configuration, and rotation direction match the original motor before energizing the unit. Follow applicable NEC requirements for disconnect means and equipment grounding when completing the installation.

Technical Specifications

• Horsepower: 1/3 HP
• Voltage: 208/230 volts
• Speed: 1075 RPM
• Number of Speeds: 3
• Rotation: Reversible

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M22586
