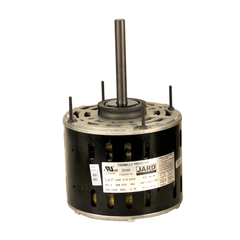

Rectorseal M22585 Condenser Fan Motor 1/3 Hp 115V

Product Description

The RECTORSEAL M22585 is a condenser fan motor rated at 1/3 horsepower and 115 volts, designed for use in residential and light commercial HVAC systems. Operating at 1075 RPM with three selectable speeds and reversible rotation, this motor provides flexible installation options for a range of condenser and evaporator fan applications. Licensed HVAC technicians install this motor as a direct replacement in split-system air conditioners, heat pumps, and package units where the original condenser fan motor has failed or degraded.

This motor is suited for outdoor condenser units and indoor air handler applications requiring a 115-volt, multi-speed fan motor. The reversible rotation feature allows the technician to match airflow direction to the original equipment requirement without sourcing a separate motor. It is commonly installed in residential cooling equipment and light commercial rooftop or split-system configurations where 1/3 HP fan motors are specified.

Key Features

• 1/3 HP output for standard condenser fan duty cycles
• 115-volt single-phase power input
• 1075 RPM operating speed for typical condenser fan airflow requirements
• Three selectable speeds for flexible system matching
• Reversible rotation direction eliminates the need for a separate CW or CCW motor

Compatibility

Designed as an OEM-style replacement for residential and light commercial HVAC condenser fan motors rated at 1/3 HP, 115 volts, 1075 RPM, three-speed, reversible rotation.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with applicable local codes and the original equipment manufacturer service documentation. Disconnect and lock out all electrical power to the unit before removing the existing motor or handling wiring. Verify that the replacement motor rotation direction, shaft size, and mounting configuration match the original before completing installation. Capacitor compatibility should be confirmed against the motor nameplate rating prior to startup.

Technical Specifications

• Horsepower: 1/3 HP
• Voltage: 115 volts
• Speed: 1075 RPM
• Number of Speeds: 3
• Rotation: Reversible

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M22585
