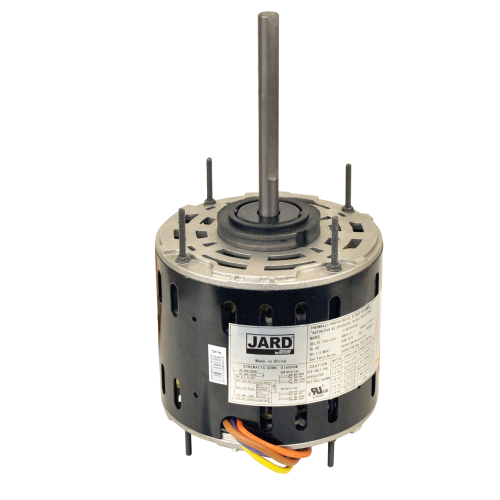

Rectorseal M22464 Direct Drive Blower Motor 1/6-1/2 Hp

Product Description

The RECTORSEAL M22464 is a direct drive blower motor rated for 1/6 to 1/2 horsepower operation at 208 to 230 volts and 1075 RPM. Designed for forced-air HVAC applications, this motor mounts directly to the blower wheel without a belt drive system, reducing drivetrain complexity and maintenance requirements. Licensed HVAC technicians install this motor in residential and light commercial air handling units, furnaces, and fan coil systems. The 208-230 volt dual-voltage rating makes it suitable for a range of electrical service configurations found in both residential and commercial installations.

The M22464 is suited for use in central air systems, gas furnaces, fan coil units, and similar forced-air equipment that requires a direct drive blower motor in the 1/6 to 1/2 HP power range. Its multi-horsepower rating allows a single motor to cover a variety of airflow load conditions, making it a practical replacement option when servicing a range of equipment. Technicians should verify the original motor specifications including frame size, rotation direction, shaft diameter, and speed taps before installation.

Key Features

• Multi-horsepower range: 1/6 to 1/2 HP for flexible application coverage
• 208-230 volt dual-voltage rating compatible with standard residential and commercial electrical service
• 1075 RPM operating speed suitable for forced-air blower applications
• Direct drive design eliminates belt and pulley components

Compatibility

Designed as an OEM-style direct drive blower motor replacement for residential and light commercial HVAC air handlers, furnaces, and fan coil units requiring a 1/6 to 1/2 HP, 208-230 volt, 1075 RPM motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handling unit before removing the original motor or handling wiring. Confirm shaft diameter, rotation direction, mounting configuration, and speed tap wiring match the original motor before final installation. Follow applicable NEC requirements for motor circuit wiring and overcurrent protection.

Technical Specifications

• Horsepower: 1/6 to 1/2 HP
• Voltage: 208-230 volts
• Speed: 1075 RPM
• Drive Type: Direct Drive

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M22464
