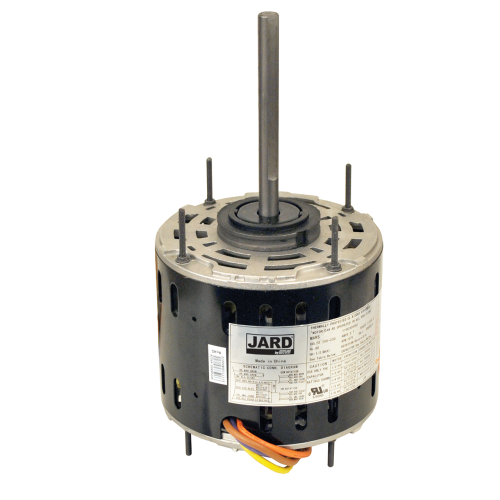

Rectorseal M22463 Direct Drive Motor 1/6-1/2 Hp 115V

Product Description

The RECTORSEAL M22463 is a direct drive blower motor designed for use in forced-air HVAC systems. Rated for a variable horsepower range of 1/6 to 1/2 HP at 115 volts, it operates at 1075 RPM and is built to replace worn or failed motors in air handlers, furnaces, and fan coil units. Licensed HVAC technicians typically source this motor when restoring airflow performance to residential or light-commercial systems. The variable HP range provides flexibility across multiple unit configurations without stocking separate motors for each application.

This motor is suited for residential and light-commercial forced-air applications where a direct drive configuration is required. It installs directly onto the blower wheel shaft without a belt or pulley, reducing mechanical complexity and simplifying replacement. Typical install scenarios include air handler blower sections and furnace indoor blower assemblies. Verify motor frame dimensions and shaft diameter before installation to confirm fit.

Key Features

• Variable horsepower range of 1/6 to 1/2 HP supports multiple unit configurations
• 115-volt single-phase operation for standard residential power supply
• 1075 RPM operating speed suited for direct drive blower applications
• Direct drive design eliminates belt and pulley components
• OEM-style replacement format for straightforward swap-out service

Compatibility

Designed as an OEM-style replacement direct drive blower motor for residential and light-commercial forced-air HVAC equipment. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out power to the air handler or furnace before removing the existing motor. Confirm that the replacement motor shaft diameter, rotation direction, and mounting configuration match the original unit before completing the swap. Follow applicable local codes and manufacturer wiring diagrams when reconnecting motor leads.

Technical Specifications

• Horsepower Range: 1/6 to 1/2 HP
• Voltage: 115 volts
• Speed: 1075 RPM
• Drive Type: Direct Drive

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M22463
